DATA CENTER INTERCONNECT
Luxglo is a global leader in the innovation, design and manufacturing of passive fiber optic products and solutions, offering a broad range of industry leading components and custom designed solutions for use in various data center networks.

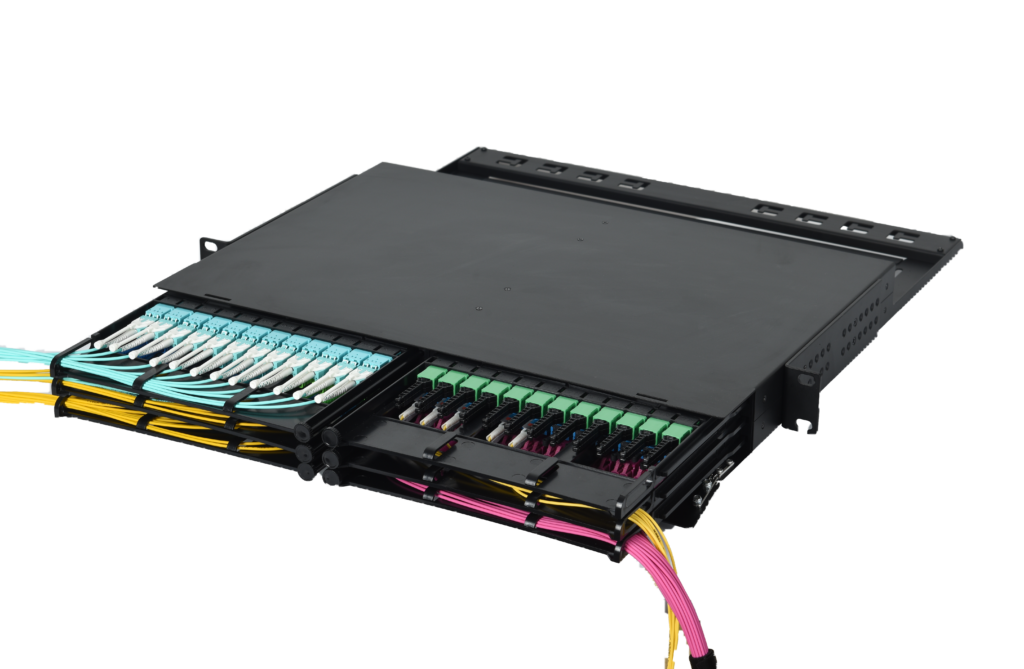

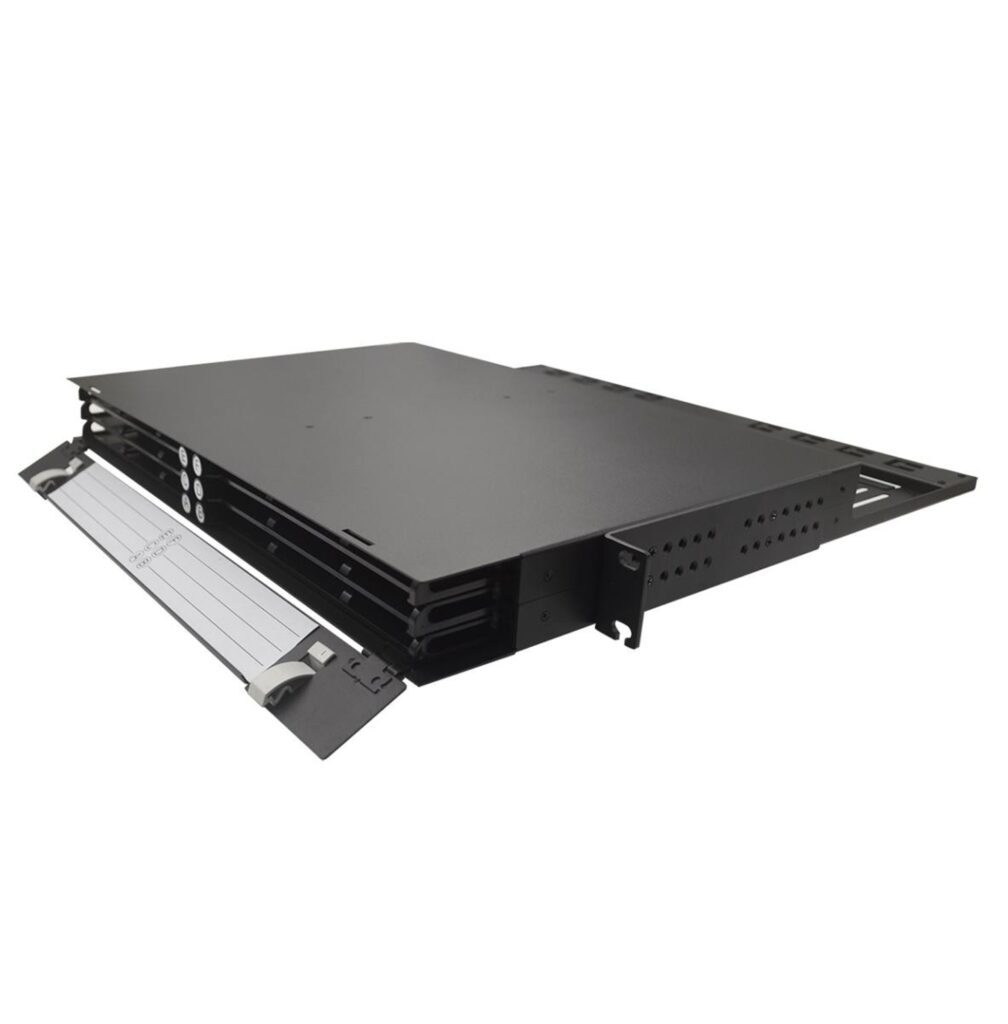

1U High Density Fiber Enclosure
- 19〃Rack mount, 2 Cassettes in each layer, 3 Layers design
- 6 Pcs plastic Independent Trays for 1U BOX ( 144F LC / 72F SC or 288F/432F Luxglo High Density Solution)
- Label space available, for visible connection
- Compliance with EI A / TIA568C
- Easy capacity expansion and operation
- Light Weight Design(Aluminum)
- RoHs and UL94-V0 Complaint

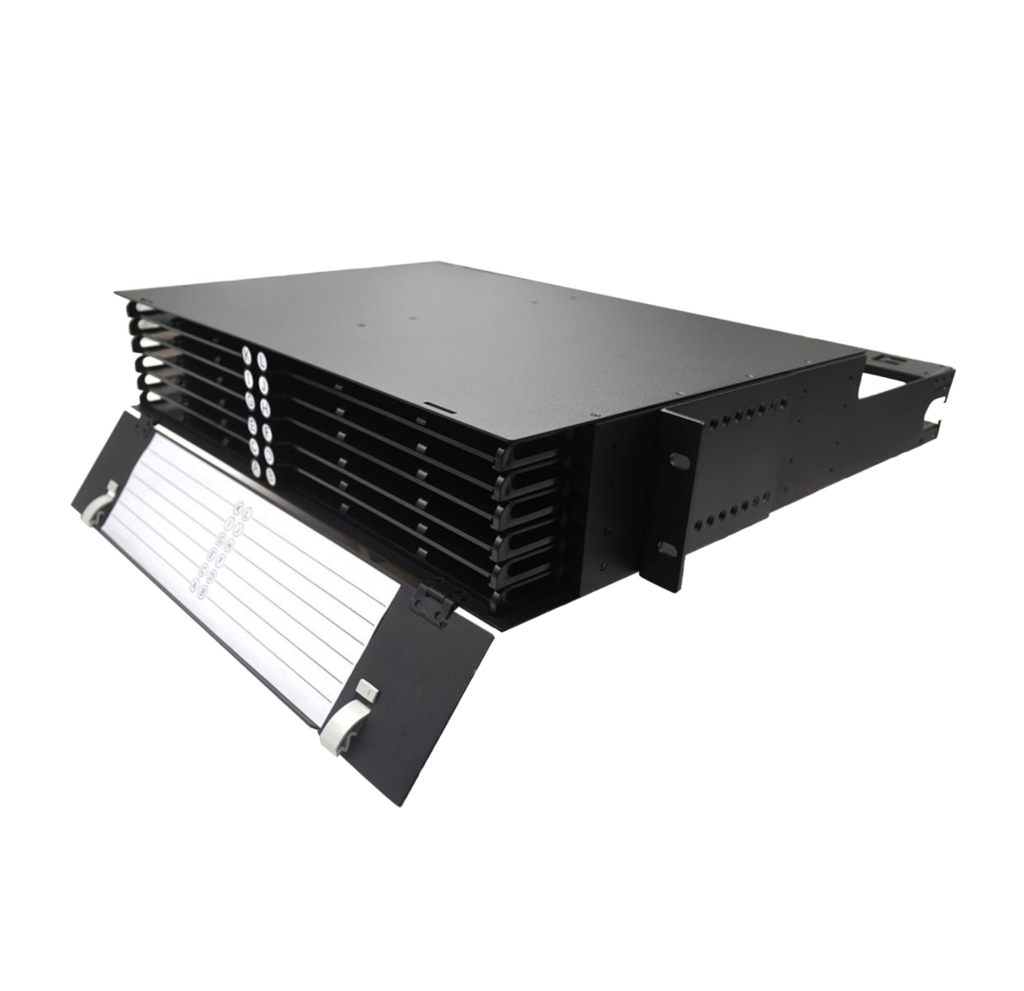

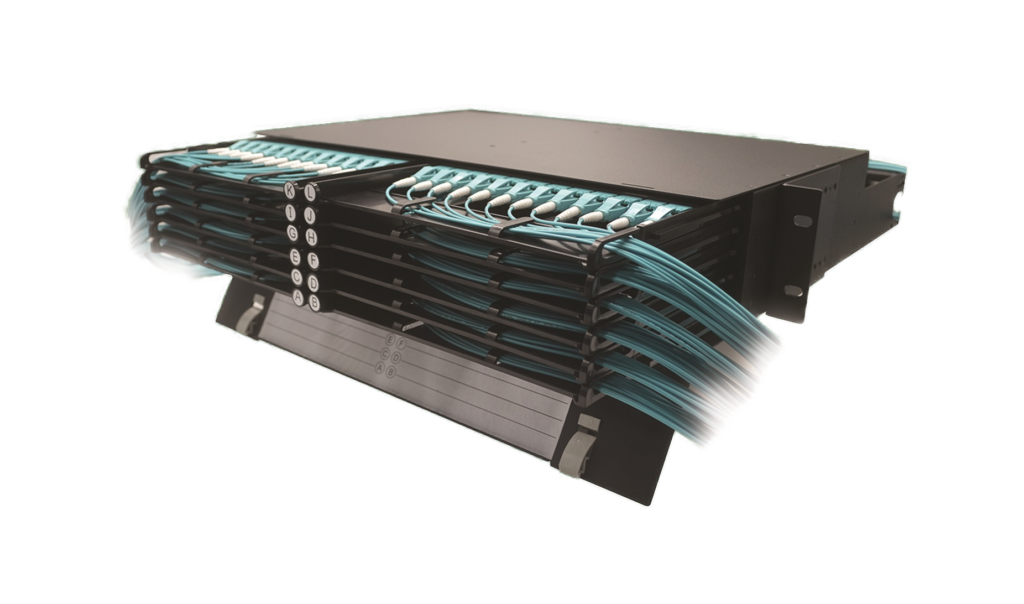

2U High Density Fiber Enclosure
- 19〃Rack mount, 2 Cassettes in each layer, 6 Layers design
- 12 Pcs plastic Independent Cassettes for 2U Box (288F LC / 144F SC or 576F/864F Luxglo High Density Solution)
- Label space available, for visible connection
- Compliance with EI A / TIA568C
- Easy capacity expansion and operation
- Light Weight Design(Aluminum)
- RoHs and UL94-V0 Complaint

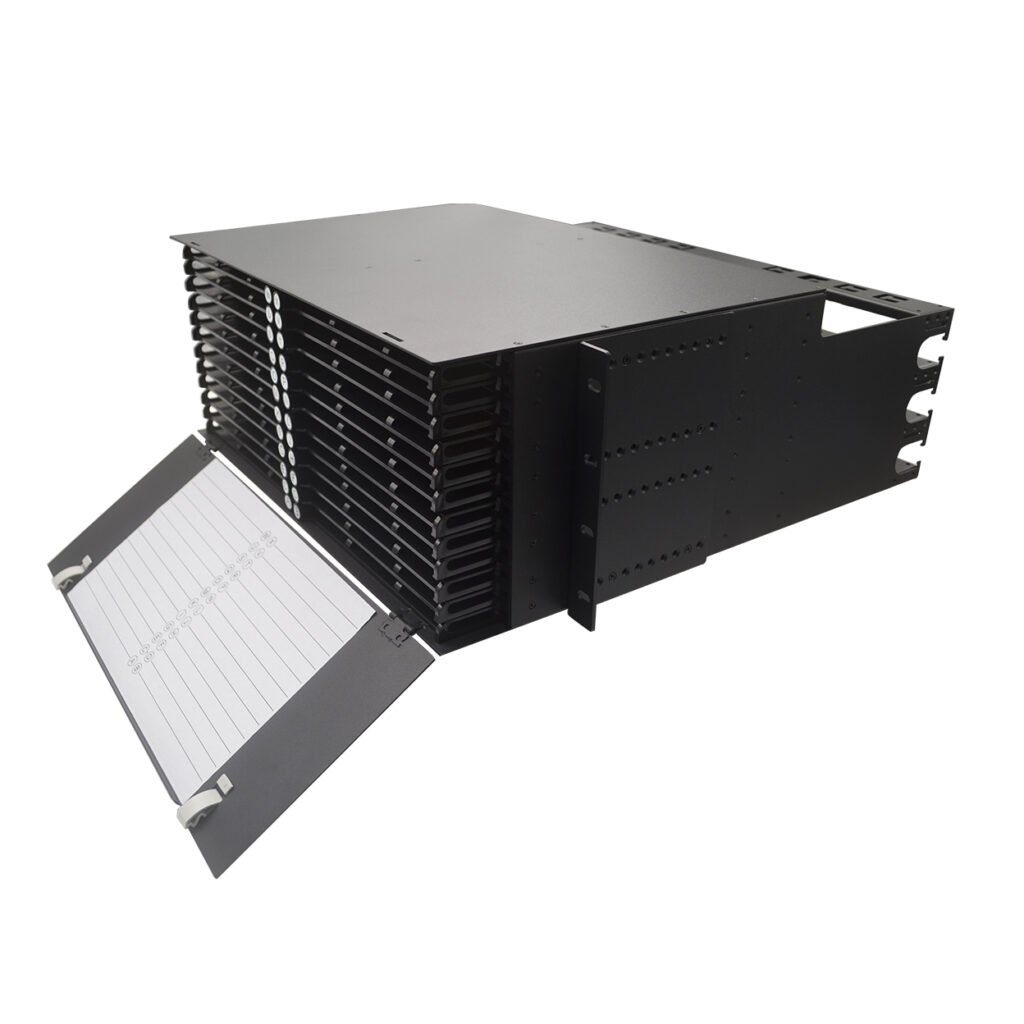

4U High Density Fiber Enclosure
- 19〃Rack mount, 2 Cassettes in each layer, 12 Layers design
- 24 Pcs plastic Independent Cassettes for 4U Box (576F LC / 288F SC or 1152F/1728F Luxglo High Density Solution)
- Label space available, for visible connection
- Compliance with EI A / TIA568C
- Easy capacity expansion and operation
- Light Weight Design(Aluminum)
- RoHs and UL94-V0 Complaint

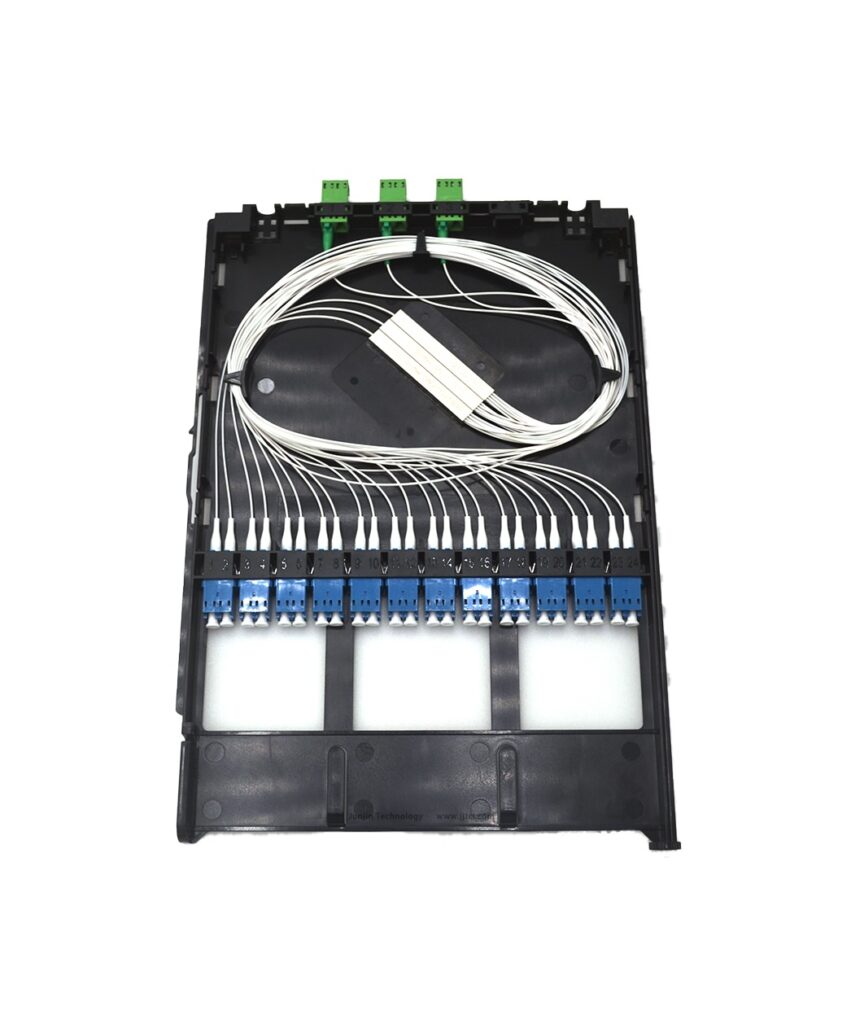

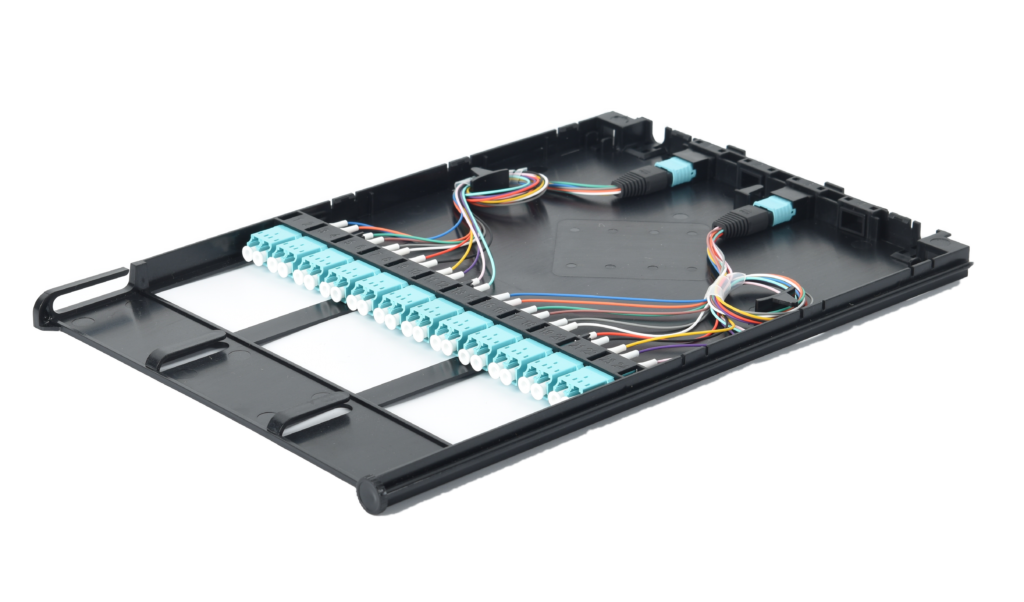

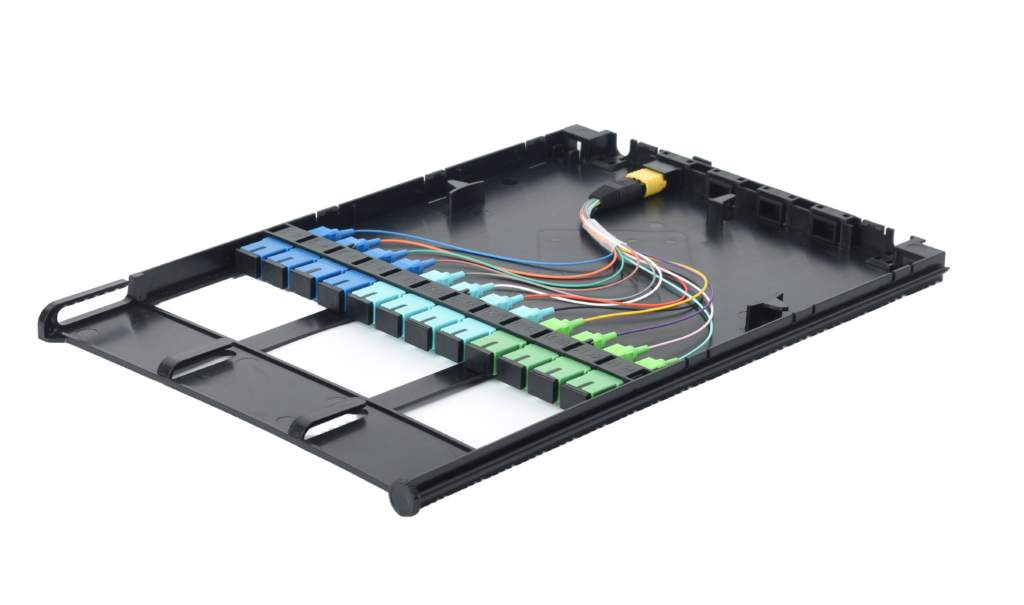

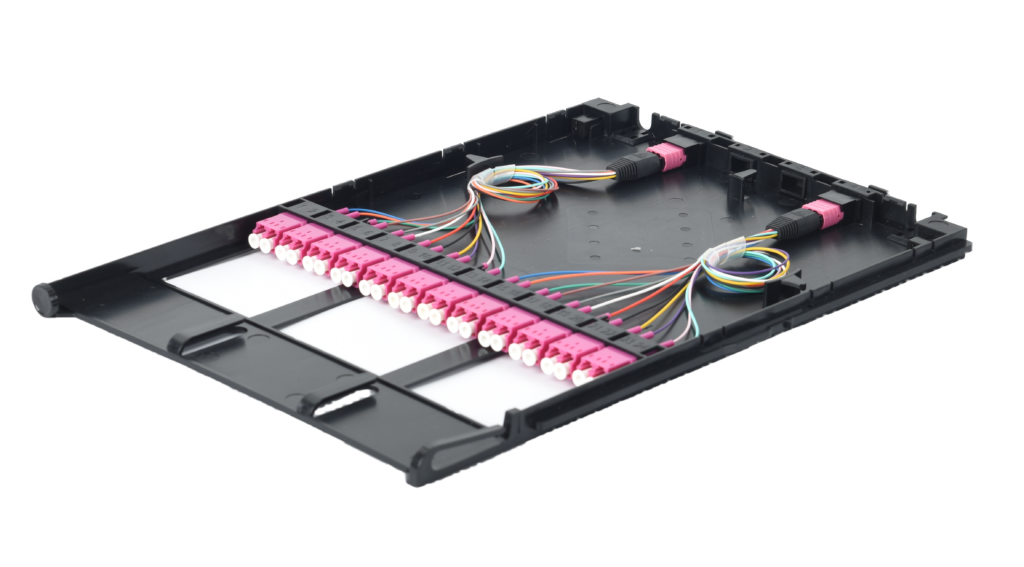

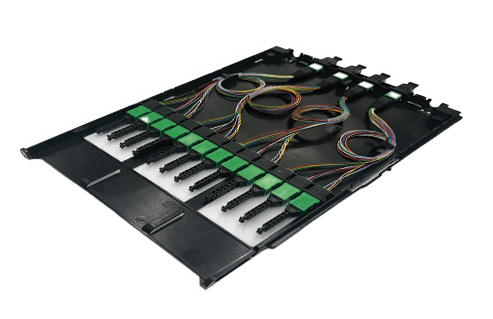

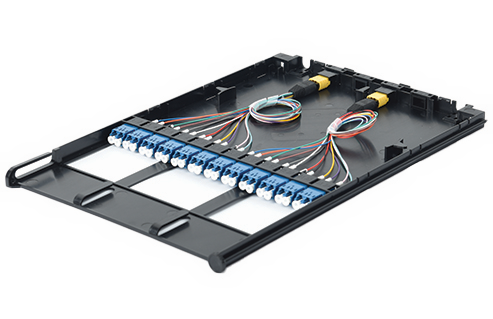

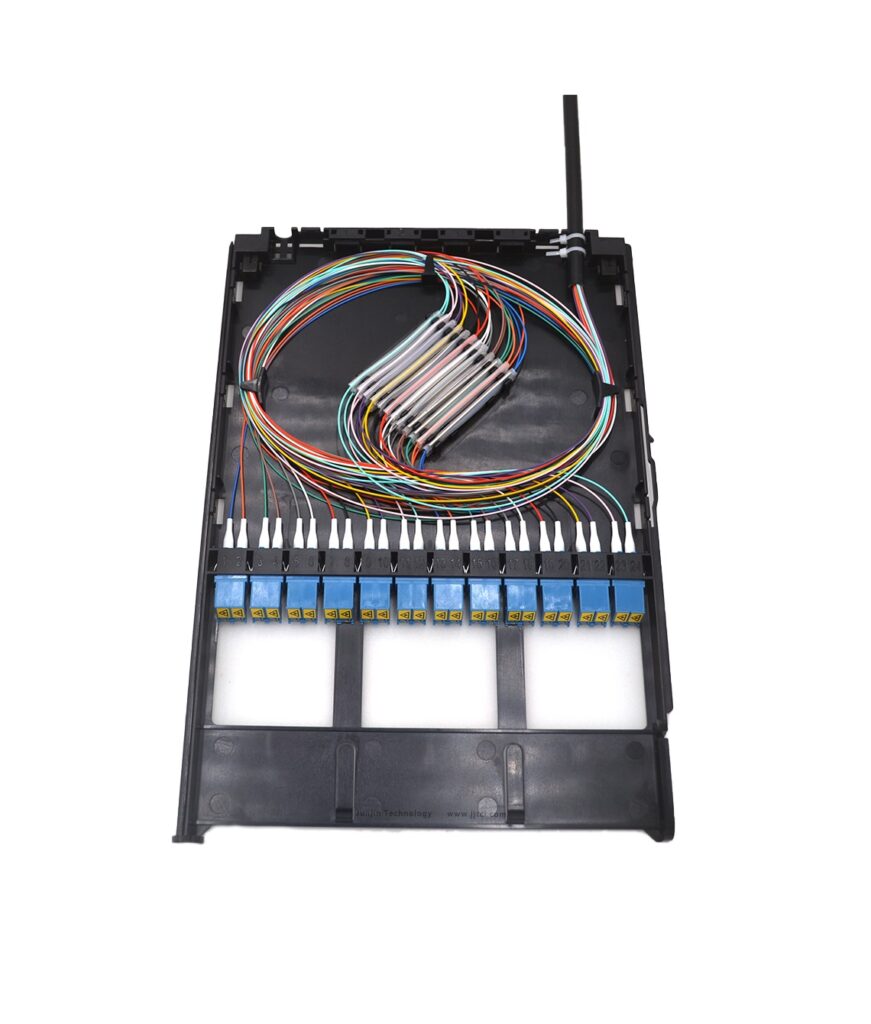

High Density Fiber Optic Cassette
- Easy to locked and pull out design
- Independent Cassettes 24F LC / 12 SC or 48F/72F Luxglo High Density Solution)
- MPO/MTP/PLC/ Coupler and a wide selection of adapters and different configurations
- Compliance with EI A / TIA568C
- Easy capacity expansion and operation
- Light Weight Design
- RoHs and UL94-V0 Complaint
*For more information and datasheets on these products, please send e-mail to contact@luxglo.com .

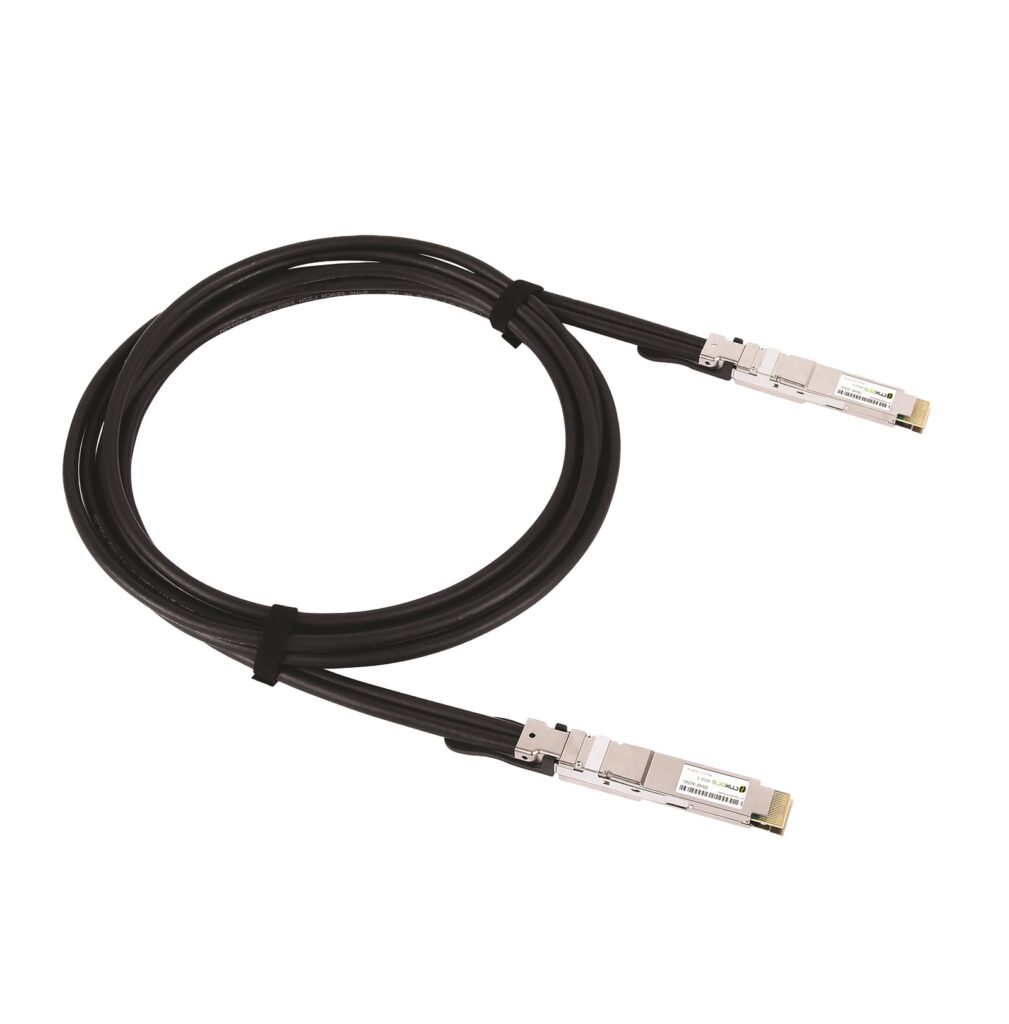

Luxglo’s AEC (Active Electrical Cables) offer more intelligence than traditional passive direct attached cables (DACs). As speeds continue to increase in data transmission, AEC technology will enable next-generation system architecture.

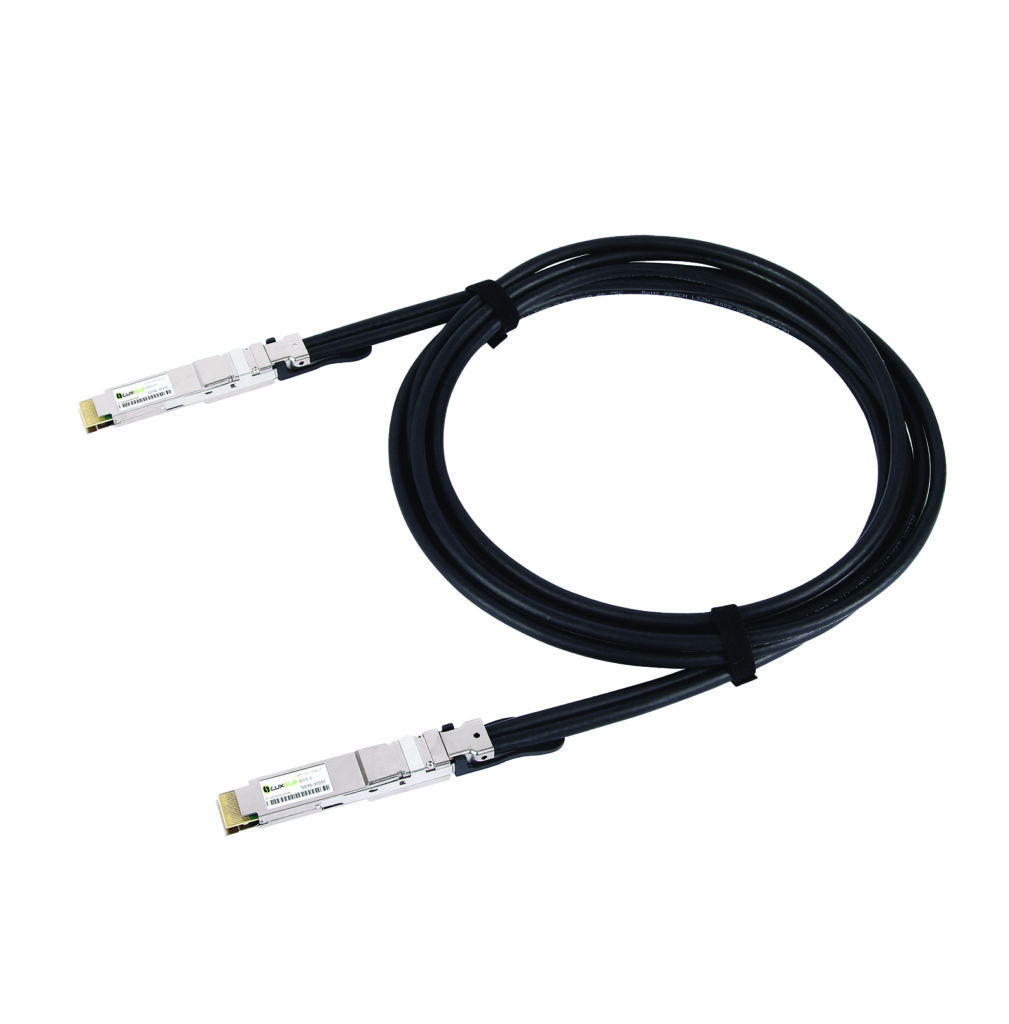

800G QSFP-DD to 800G QSFP-DD Cable
- 8x100G (PAM4) to 8x100G (PAM4)
- QSFP-DD MSA / CMIS5.2 compliant
- Single 3.3V power supply
- Hot pluggable
- I2C management interface
- Operating temperature range: 0 to 70°C
- Power consumption: <10W
- Length 0.5-2.5m
- Diameter 6.8mm / 16P 32AWG
800G OSFP to 800G OSFP CABLE
- 8x100G (PAM4) to 8x100G (PAM4)
- OSFP MSA / CMIS5.2 compliant
- Single 3.3V power supply
- Hot pluggable
- I2C management interface
- Operating temperature range: 0 to 70°C
- Power consumption: <10W
- Length 0.5-2.5M
- Diameter 6.8m / 16P 32AWG
400G QSFP-DD to 400G QSFP-DD Cable
- 8x50G (PAM4) to 8x50G (PAM4)
- QSFP-DD MSA / Single 3.3V power supply
- Hot pluggable
- I2C management interface
- Operating temperature range: 0 to 70°C
- Power consumption: <5W
- Length 0.5-2.5m
- Diameter 6.8mm / 8P 32AWG
Luxglo is a global leader in the innovation, design and manufacturing of active optical cabling solutions, offering a broad range of industry leading components for use in various data center configurations. We also do custom designs specific to your requirements.

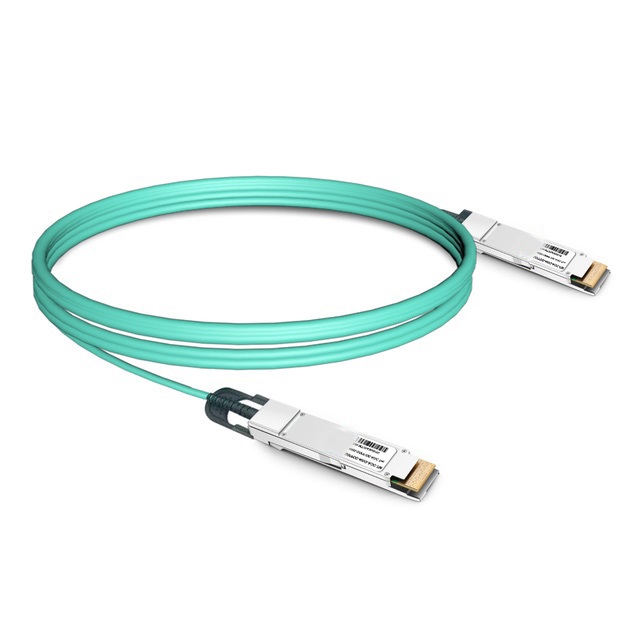

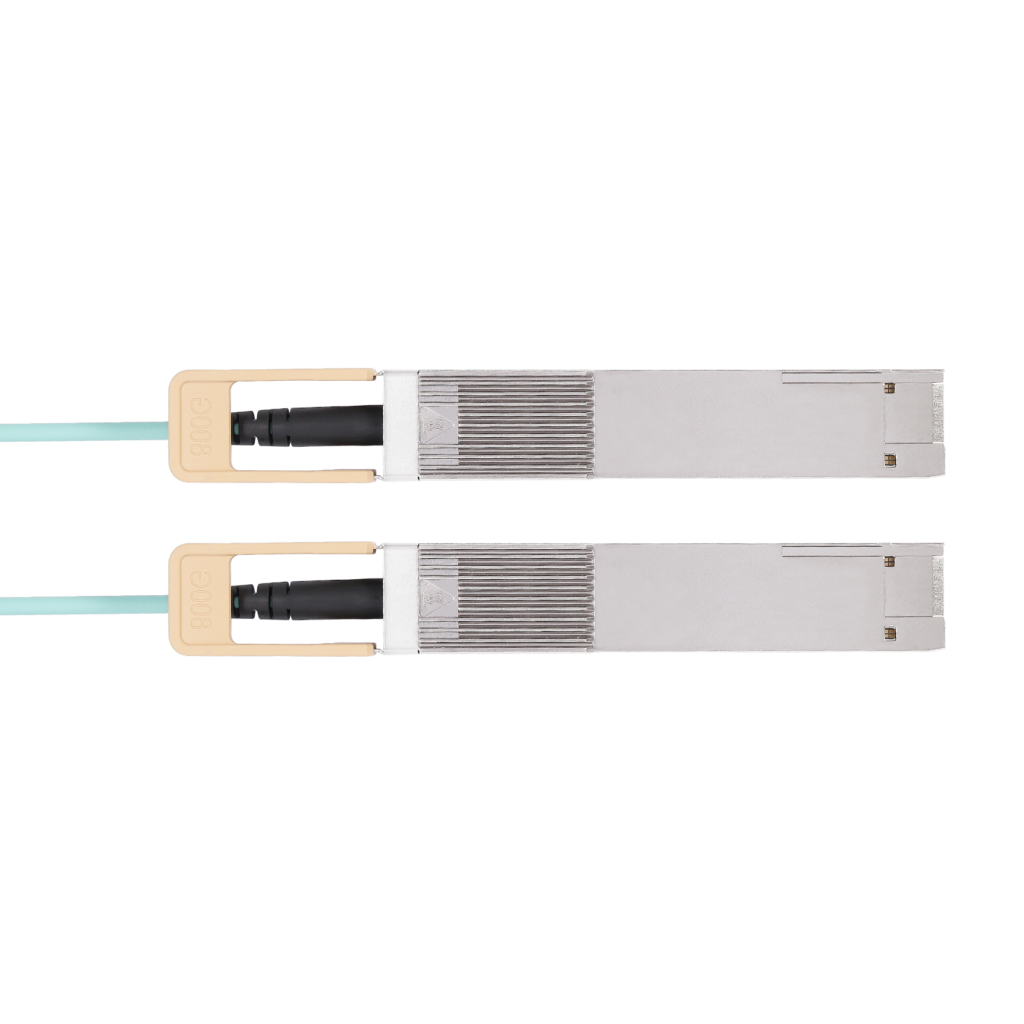

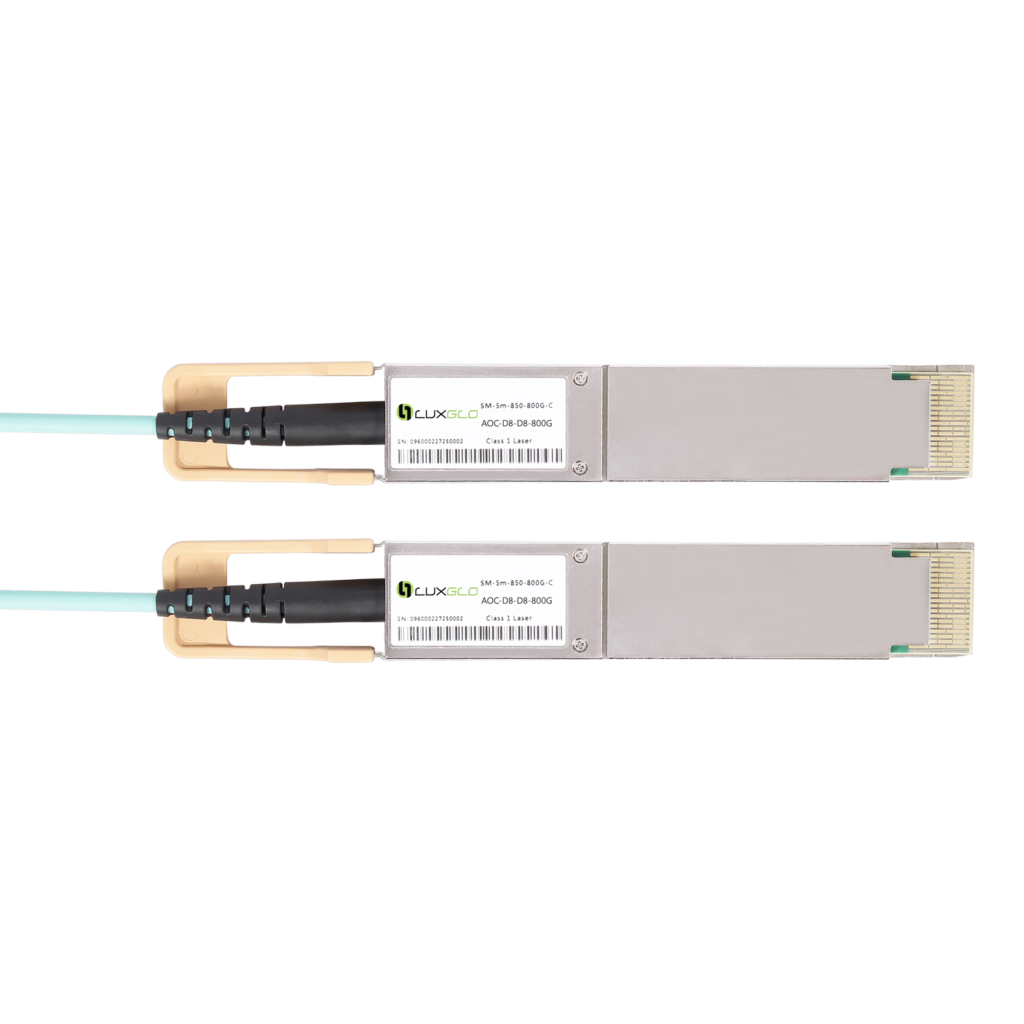

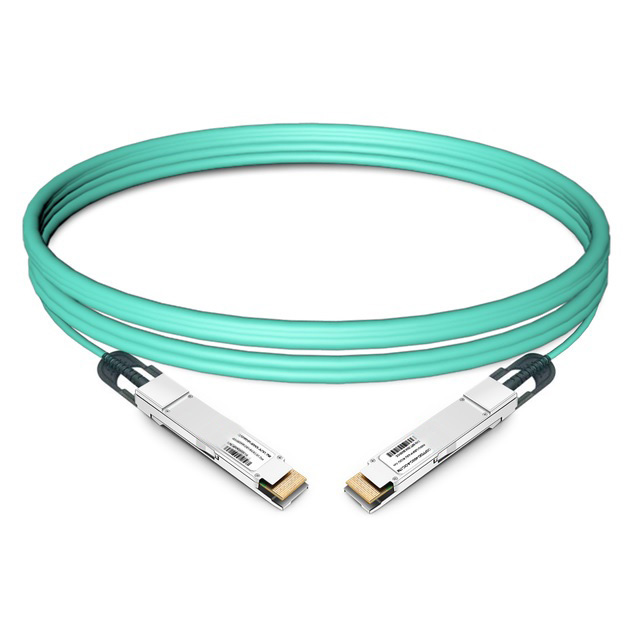

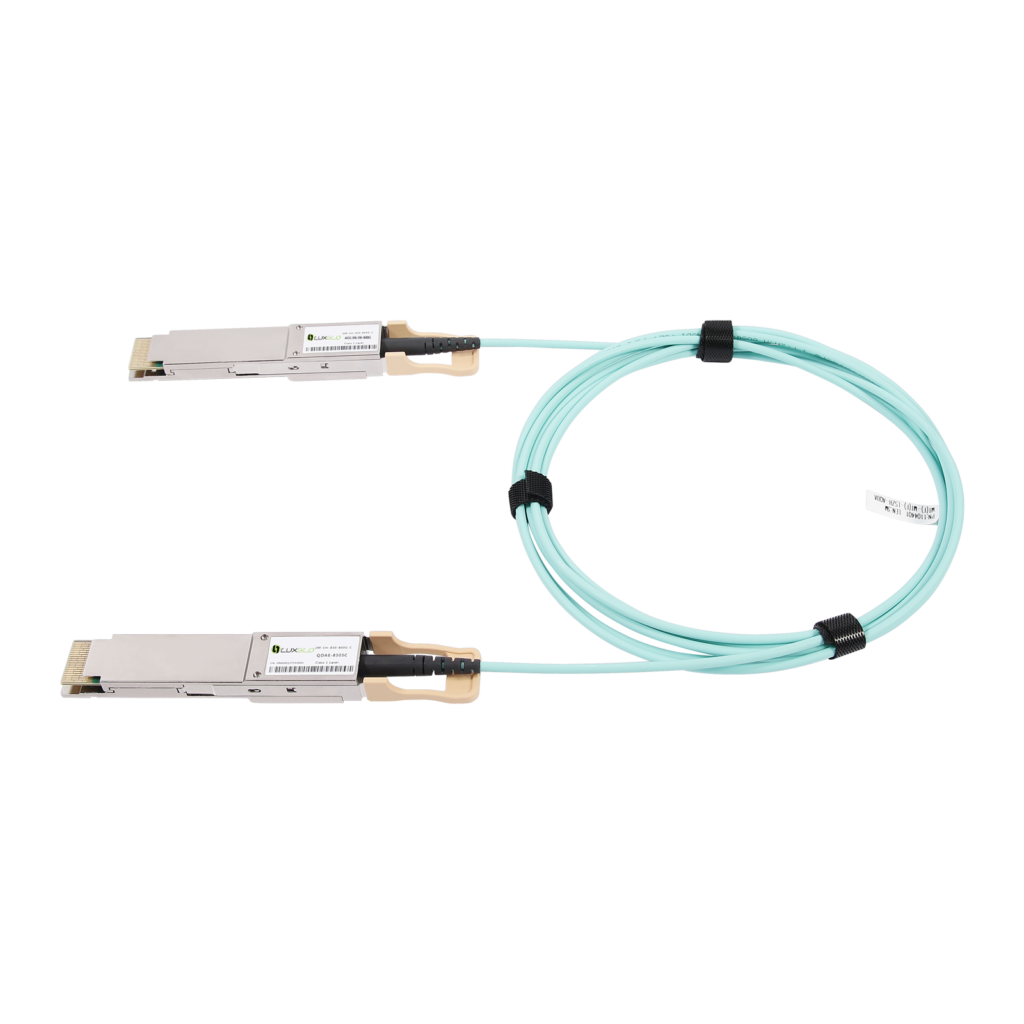

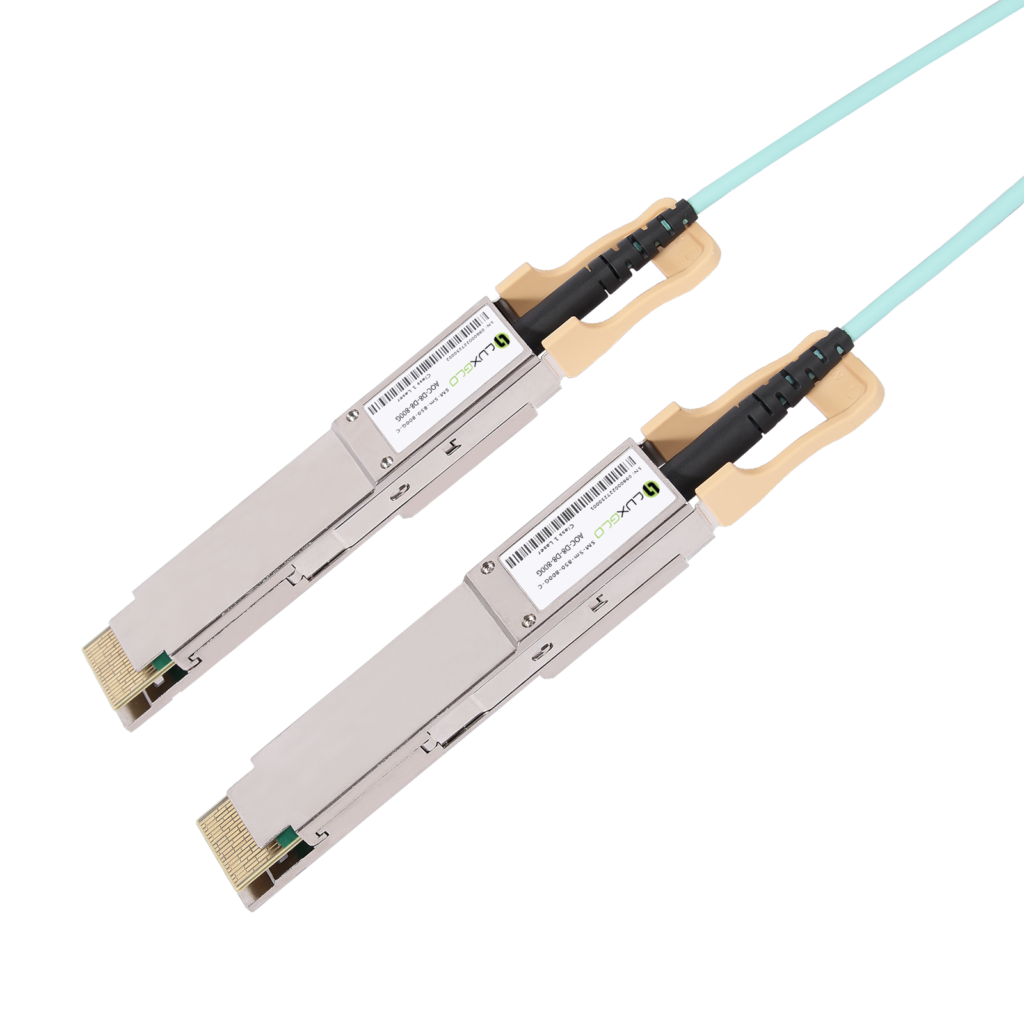

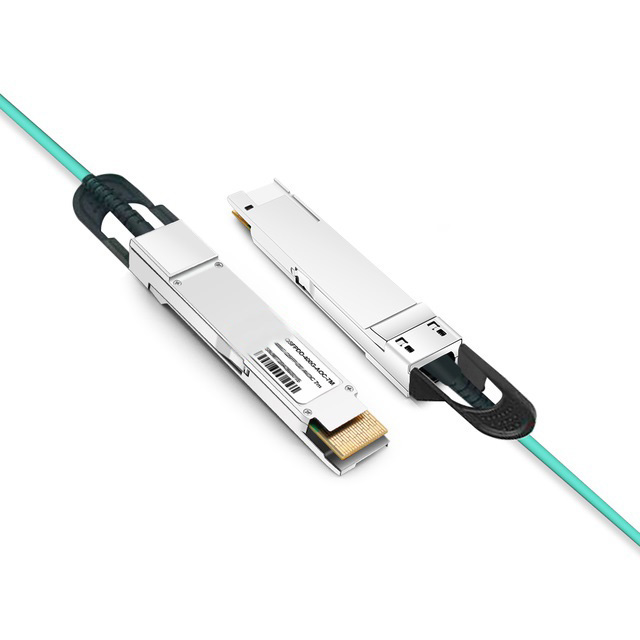

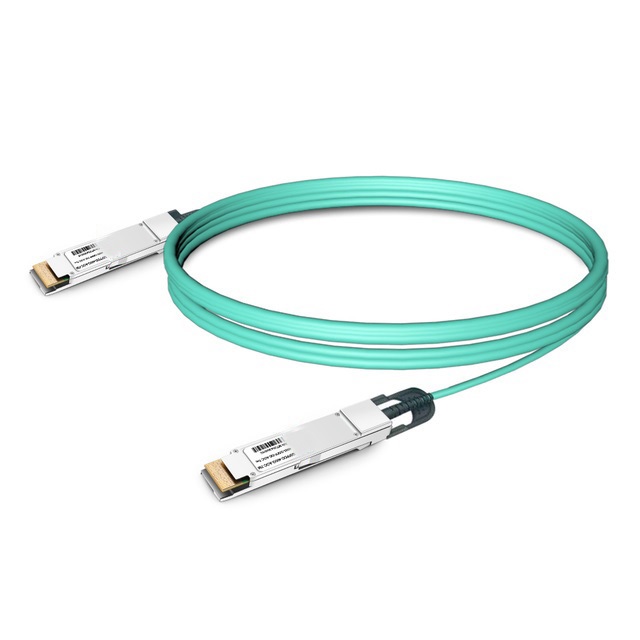

800G QSFP-DD ACTIVE OPTICAL CABLE
- 8x100G PAM4 retimed 800GAUI-8 electrical interface
- Active Optical Cable
- 8 channel VCSEL arrays and 8 channels PIN photo detector arrays
- Maximum link length of 60m on OM3 or 100m on OM4
- Hot Pluggable QSFP-DD form factor
- Compliant with CMIS 5.2
- Short-range data communication
- 8 duplex channels with 850Gbit/s aggregate bandwidth

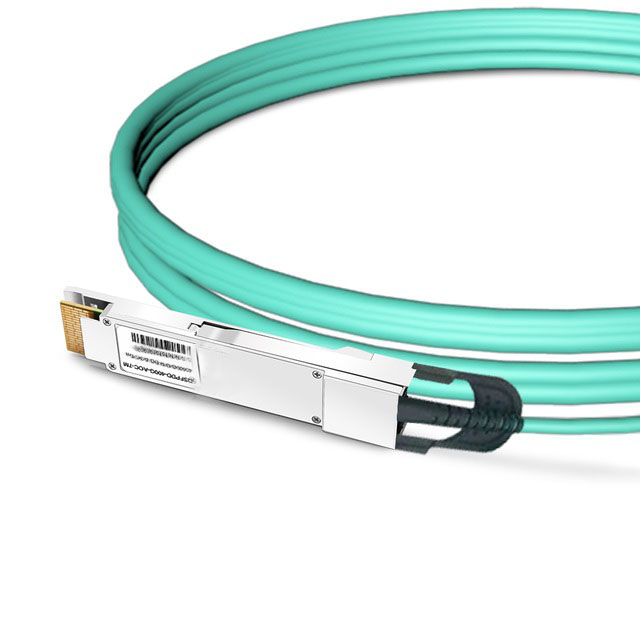

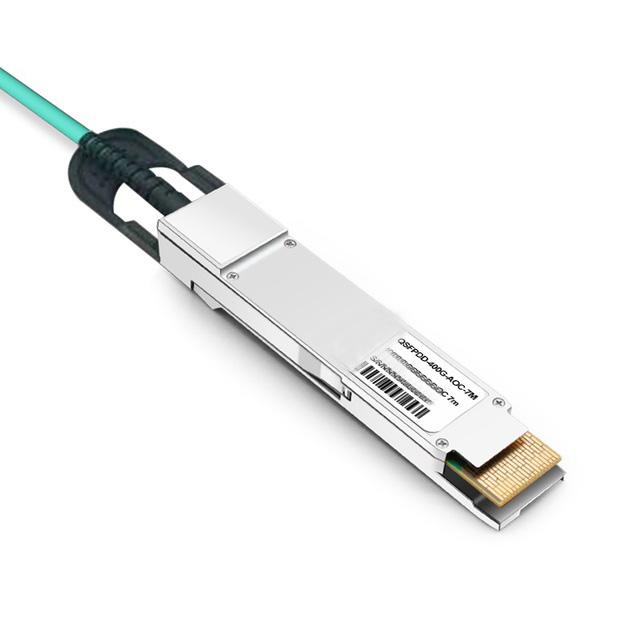

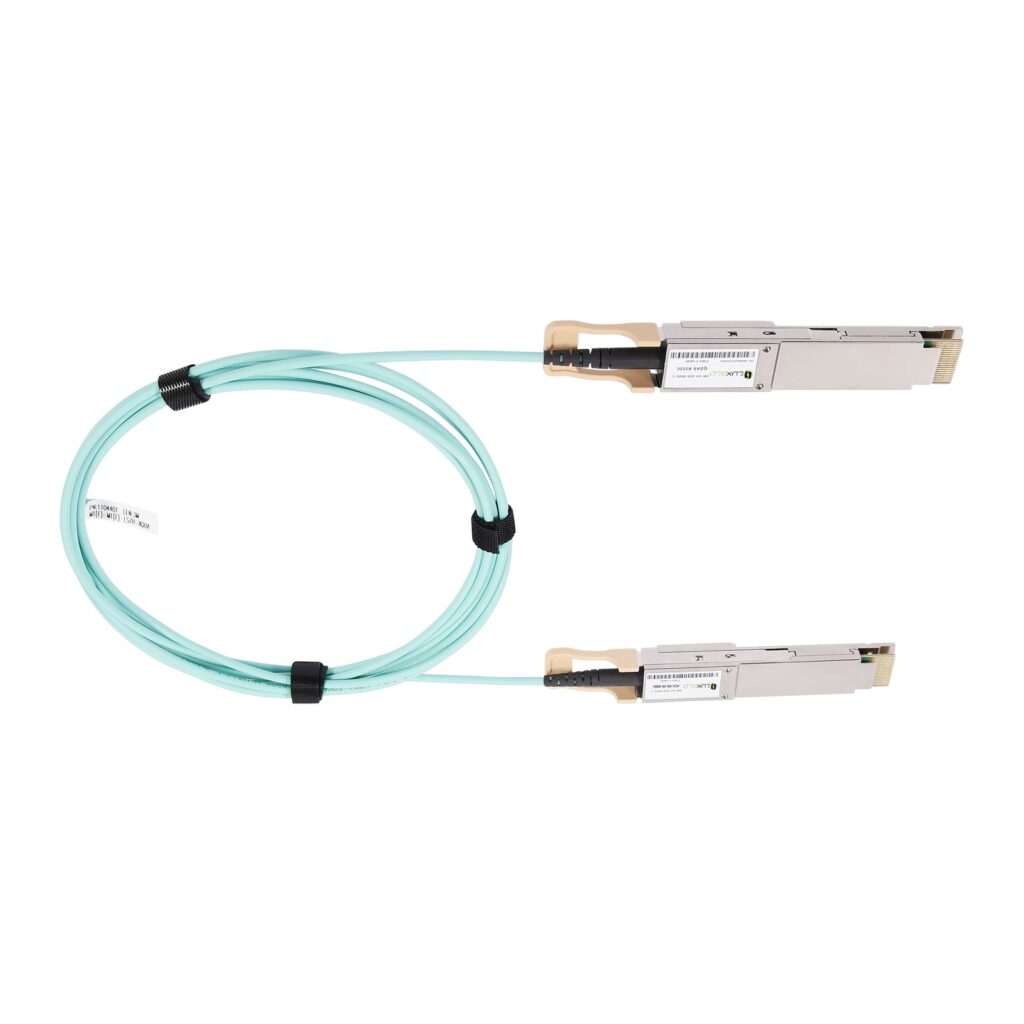

400G QSFP-DD ACTIVE OPTICAL CABLE ( AOC )
- 8×53.125Gb/s electrical interface (400GAUI-8)
- QSFP-DD MSA compliant
- Compliant to IEEE 802.3bs Specification
- Up to 70m transmission on multi-mode fiber (MMF) OM3 with FEC
- Operating case temperature: 0 to 70℃
- Data Rate 53.125Gbps (PAM4) per channel
- Maximum power consumption 11W
- RoHS complaint

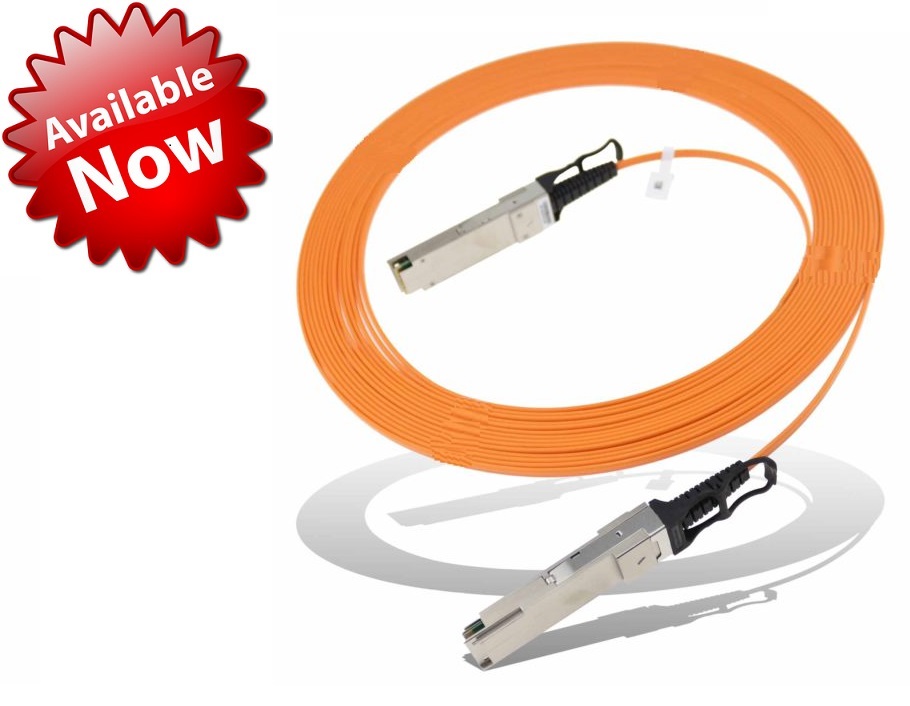

40G QSFP+ ACTIVE OPTICAL CABLE
• Full duplex 4 channel 850nm parallel active optical cable
• Transmission data rate up to 10.3Gbit/s per channel
• SFF-8436 QSFP+ compliant
• Hot pluggable electrical interface
• Differential AC-coupled high speed data interface
• 4 channels 850nm VCSEL array
• 4 channels PIN photo detector array
• Low power consumption 1.5W
25G SFP28 ACTIVE OPTICAL CABLE ( AOC )
- 25Gbps Serial Optical Interface
- High quality and reliability optical device and Sub-assemblies
- High sensitivity PIN photodiode and TIA
- SFP+ MSA Compliant
- Compliant with SFF 8431 for electrical interface
- SFI High Speed electrical interface
- Tx_Disable and Rx_LOS function supported
- Compliant with SFF 8432 for mechanical interface
- SFP Mechanical Interface for easy removal
- Flat, rubberized, LSZH cable
- Compliant with SFF8742
- Low Power Consumption
- Not over 1W per cable end in temperature range of 0 to 70℃

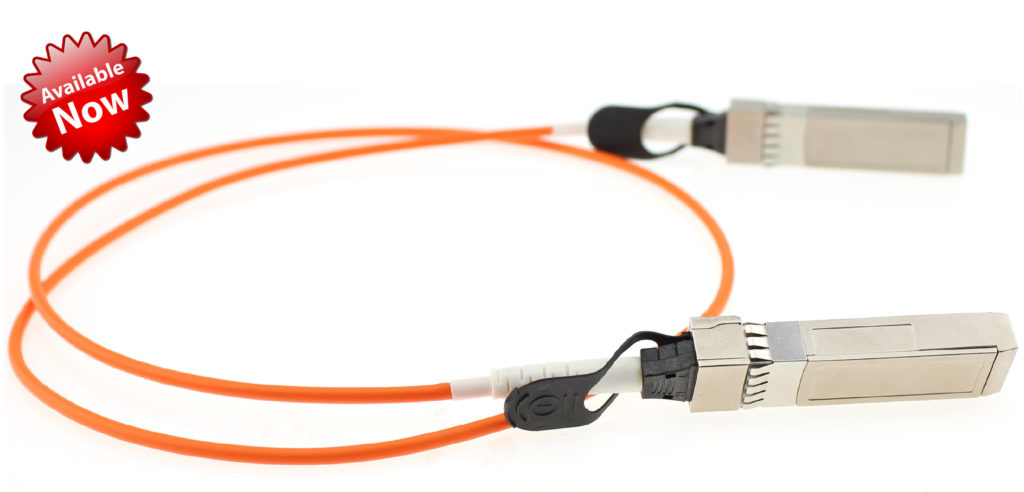

10G SFP+ ACTIVE OPTICAL CABLE
• Electrical interface compliant to SFF-8431
• Hot Pluggable
• 850nm VCSEL transmitter
• PIN photo-detector receiver
• Up to 300m on OM3 MMF
• Operating case temperature: 0 to 70℃
• All-metal housing for superior EMI performance
• RoHS compliant (lead free)
100G QSFP28 to 4X25G SFP28 ACTIVE OPTICAL CABLE ( AOC )
- Available in lengths of 1 to 100m
- 4 independent full-duplex channels up
- To 25Gbps data rate per wavelength
- Hot-pluggable electrical interface
- RoHS compliant and Lead Free
- 850nm VCSEL transmitter
- PIN photo-detector receiver
- Low power consumption < 2.5W (QSFP28), <1W (SFP28)
- Commercial operating temperature optional

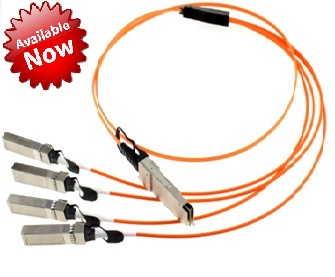

40G QSFP+ to 10G SFP+ ACTIVE OPTICAL CABLE
• Electrical interface compliant to QSFP+ connector (SFF-8436) and SFP+ connectors (SFF-8431)
• Hot Pluggable
• 850nm VCSEL transmitter, PIN photo-detector receiver
• Up to 100m on OM3 MMF
• Operating case temperature: 0 to 70℃
• All-metal housing for superior EMI performance
• RoHS compliant (lead free)
Luxglo is a global leader in the innovation, design and manufacturing of active optical cabling solutions, offering a broad range of industry leading components for use in various data center configurations. We also do custom designs specific to your requirements.

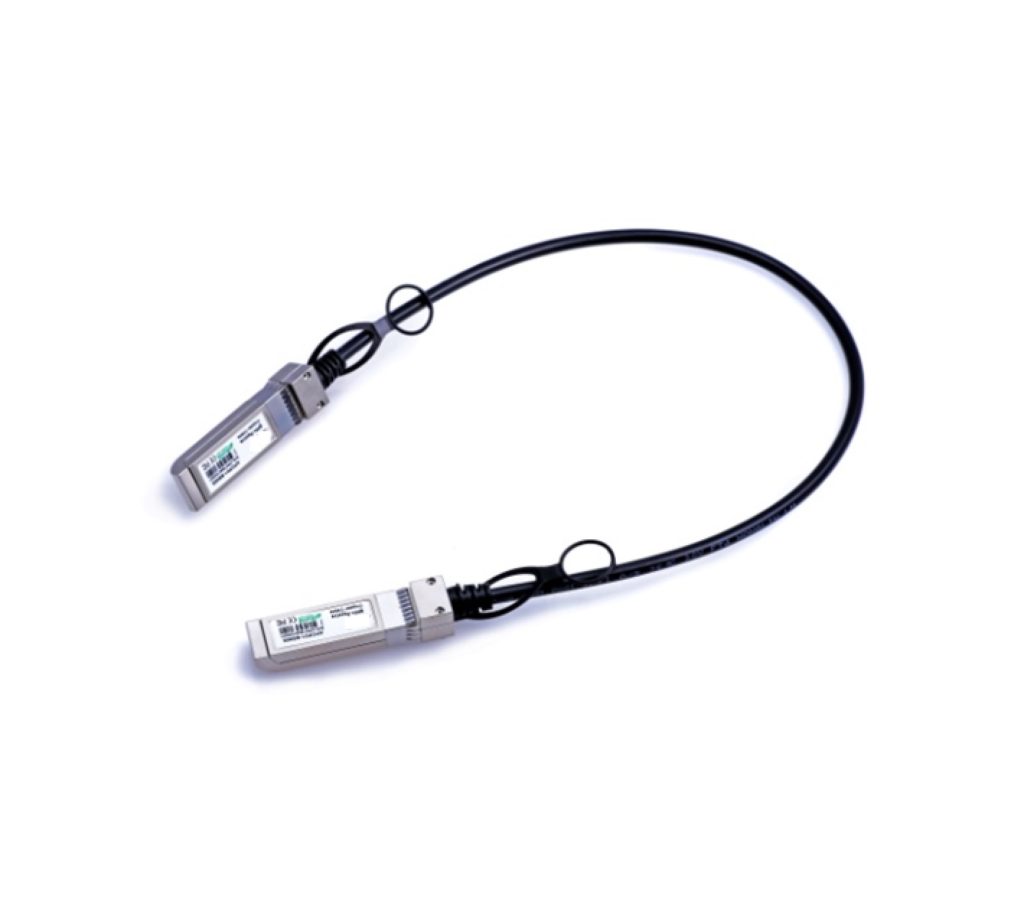

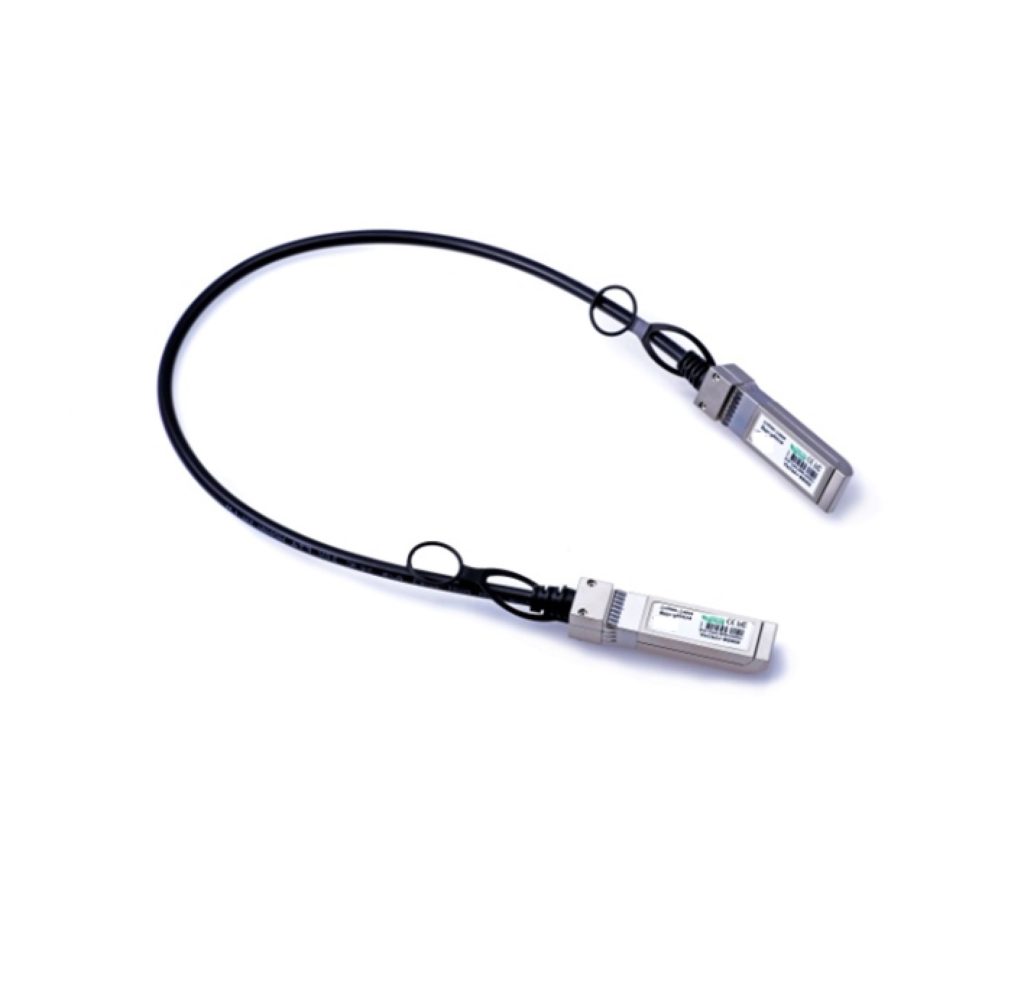

10G SFP+ ACTIVE DAC DIRECT-ATTACH CABLE
- Truly broadband – operates from 1 to 10.5 Gb/s
- Support hot-pluggable
- Available in lengths from 1m to 15m
- 360 degree cable braid crimp and enhanced EMI skirt
- Excellent ESD protection
- Single 3.3V power supply
- RoHS Compliant and Lead-Free
- Compliant with SFF-8472 Rev 11.1
- Compliant with SFP+ MSA: SFF-8431 Rev4.1
- Wire/Cable Type Twinax
10G SFP+ PASSIVE DAC DIRECT-ATTACH CABLE
- Truly broadband – operates from 1 to 10.5 Gb/s
- Support hot-pluggable
- Available in lengths from 1m to 7m
- 360 degree cable braid crimp and enhanced EMI skirt
- Low insertion loss and low crosstalk
- Single 3.3V power supply
- RoHS Compliant and Lead-Free
- Compliant with SFF-8472 Rev 11.1
- Compliant with SFP+ MSA: SFF-8431 Rev4.1
- Wire/Cable Type Twinax

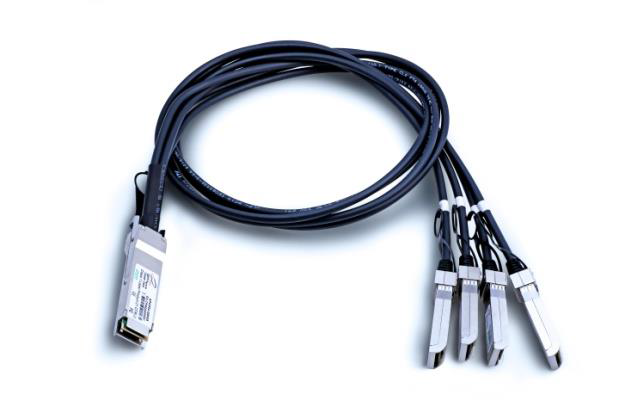

QSFP+ to 4xSFP+ , 40G/10G, ACTIVE Breakout DAC Cable

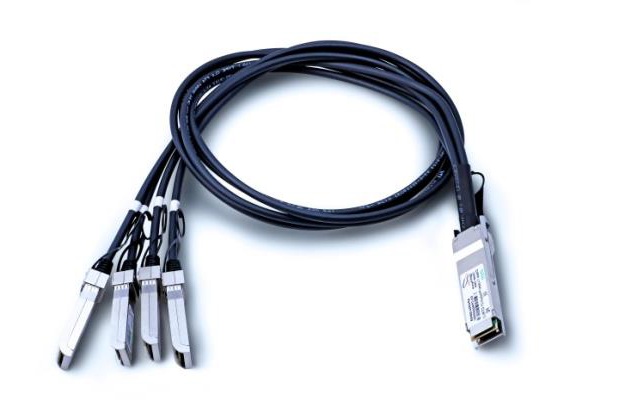

QSFP+ to 4xSFP+ , 40G/10G, PASSIVE Breakout DAC Cable
- Available in lengths of 1 to 5m
- Four-channel full-duplex active copper cable with breakout
- from QSFP+ to four SFP+
- Hot-pluggable QSFP+ footprint
- RoHS compliant and Lead Free
- Power dissipation <0.1W (0~70°C)
- Commercial operating temperature optional
- Compliant with IEEE802.3ba, SFF-8436

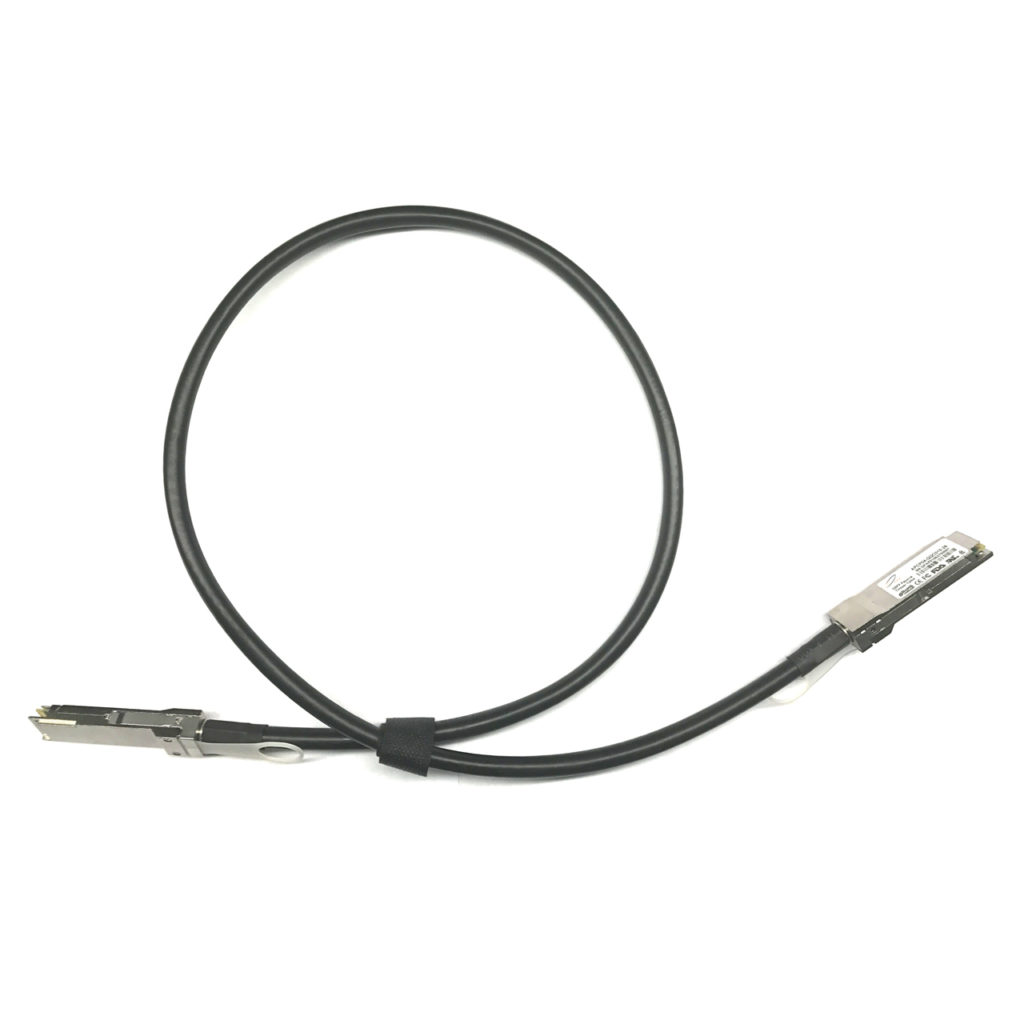

40G QSFP+ ACTIVE DAC DIRECT-ATTACH COPPER CABLE
- Available in lengths of 1 to 5m
- 4 independent full-duplex channels up to 11.3Gbps data rate per wavelength
- Hot-pluggable QSFP +footprint
- RoHS compliant and Lead Free
- Power dissipation <0.1W (0~70℃)
- Commercial operating temperature optional
- Compliant with IEEE802.3ba, SFF-8436

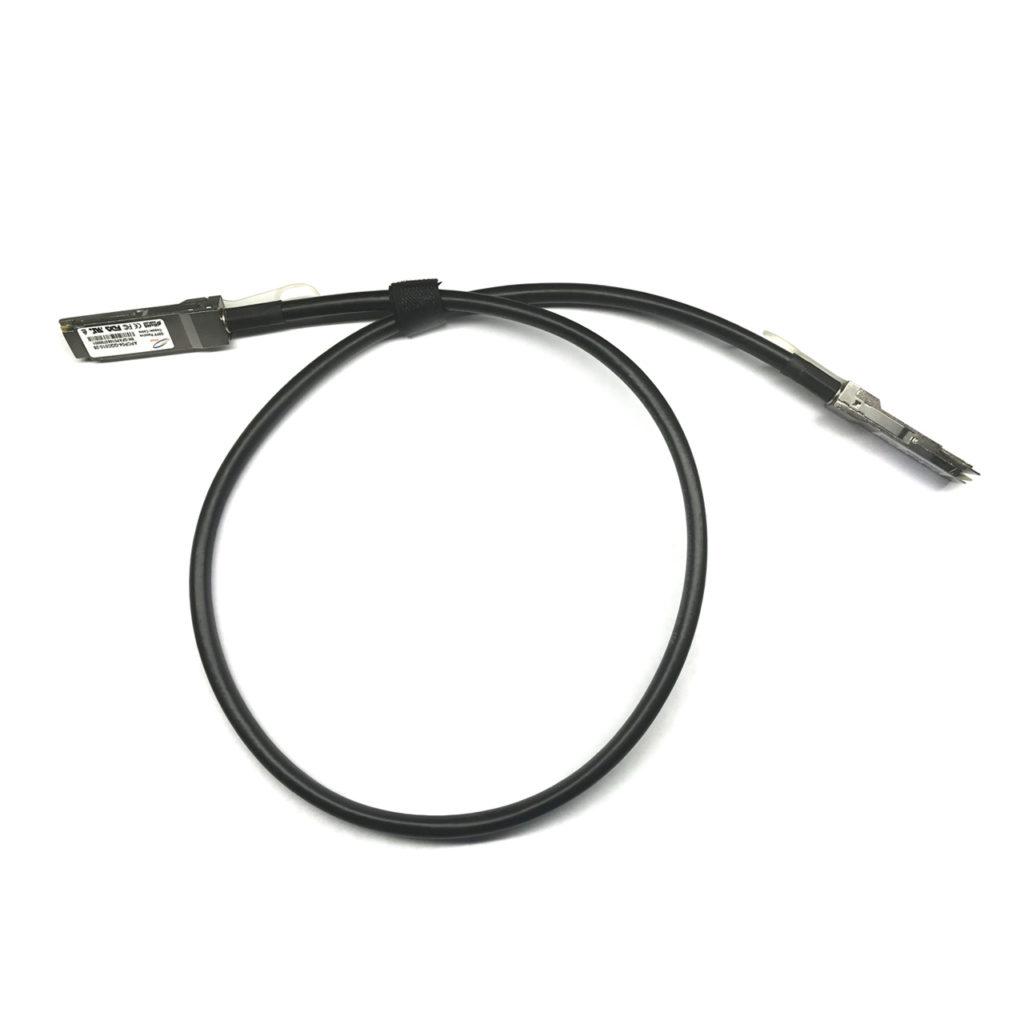

40G QSFP+ PASSIVE DAC DIRECT-ATTACH COPPER CABLE
- Available in lengths of 1 to 5m
- 4 independent full-duplex channels up to 11.3Gbps data rate per
- wavelength
- Hot-pluggable QSFP +footprint
- RoHS compliant and Lead Free
- Power dissipation <0.1W (0~70℃)
- Commercial operating temperature optional
- Compliant with IEEE802.3ba, SFF-8436
