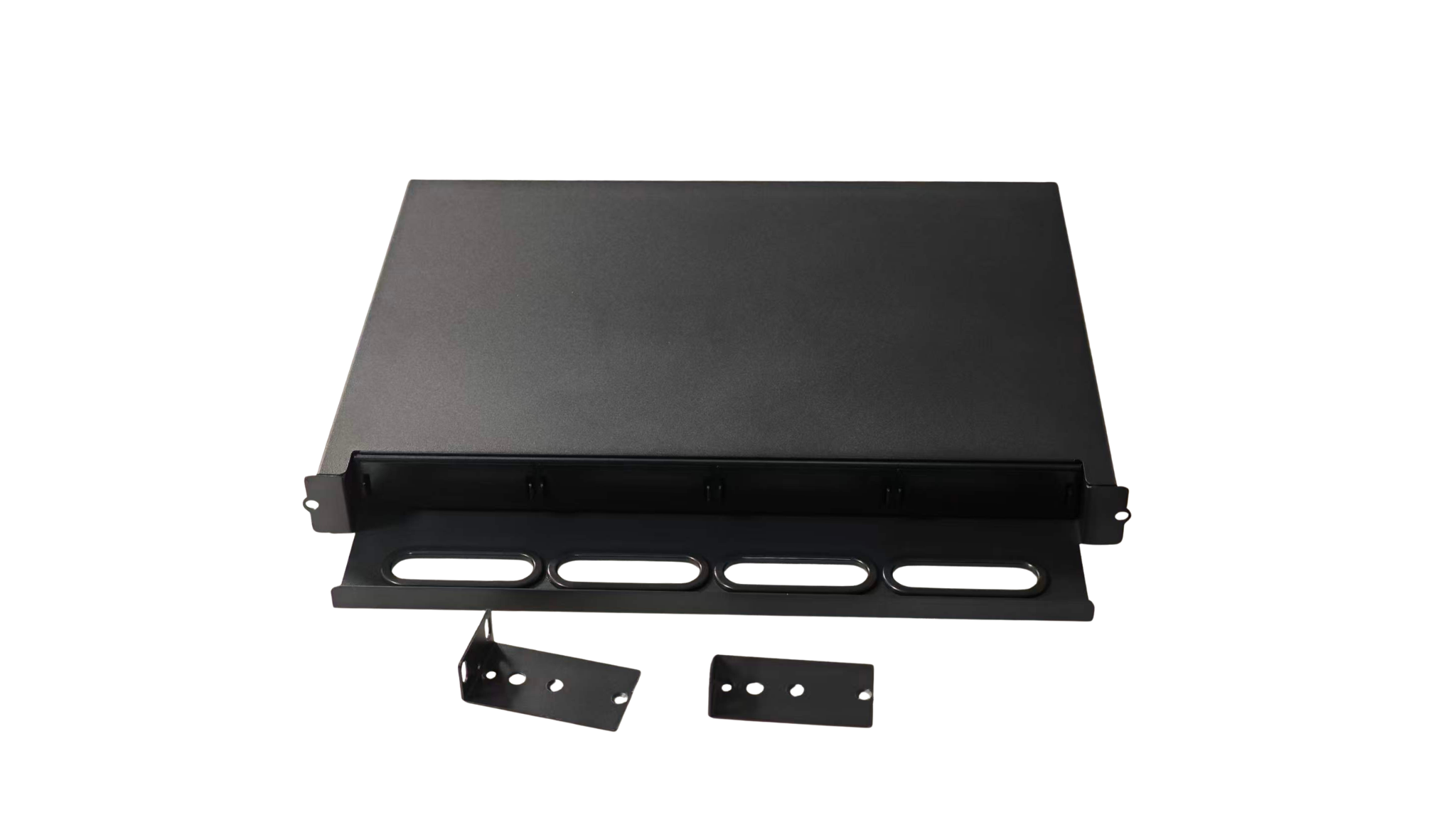

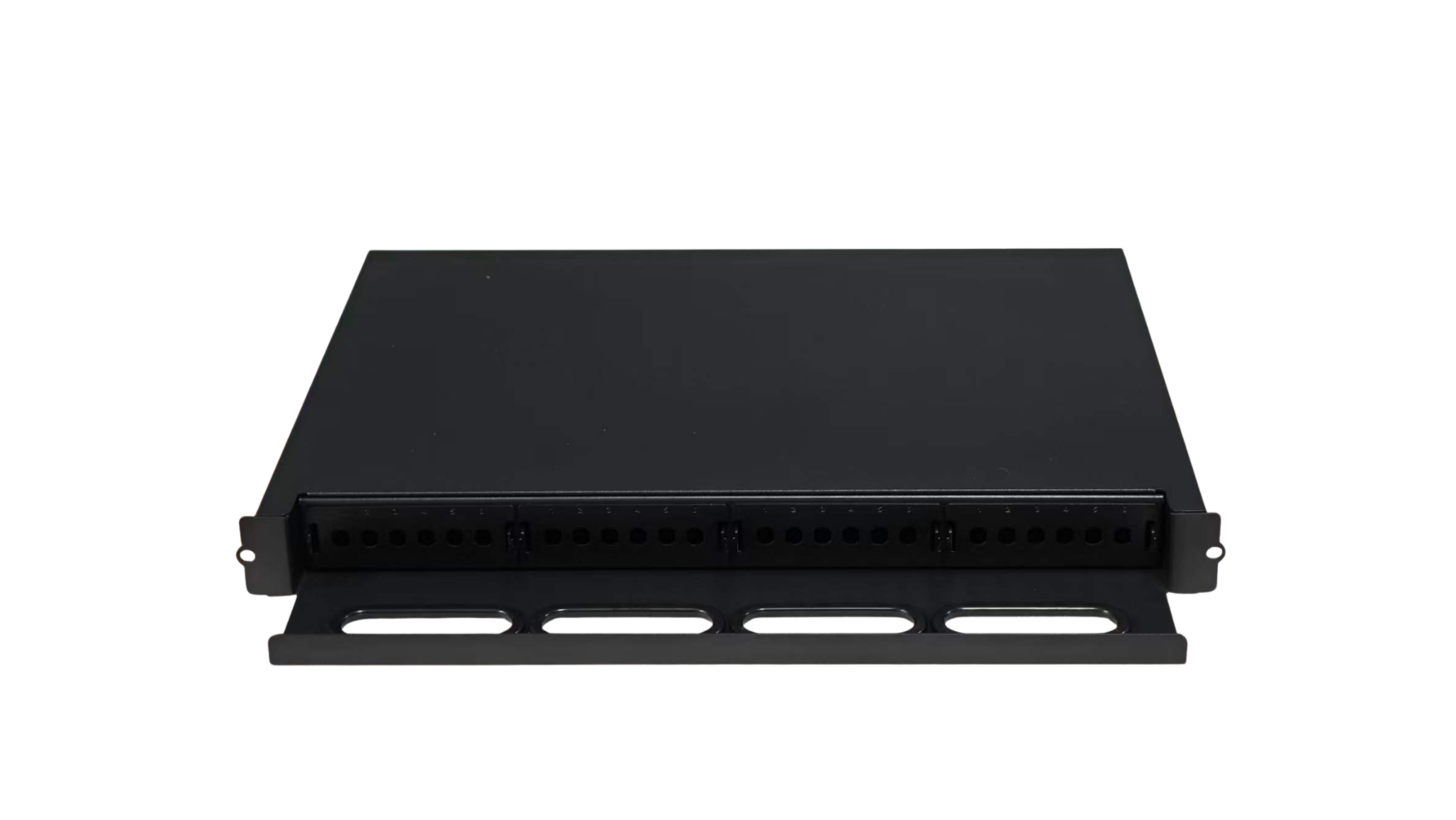

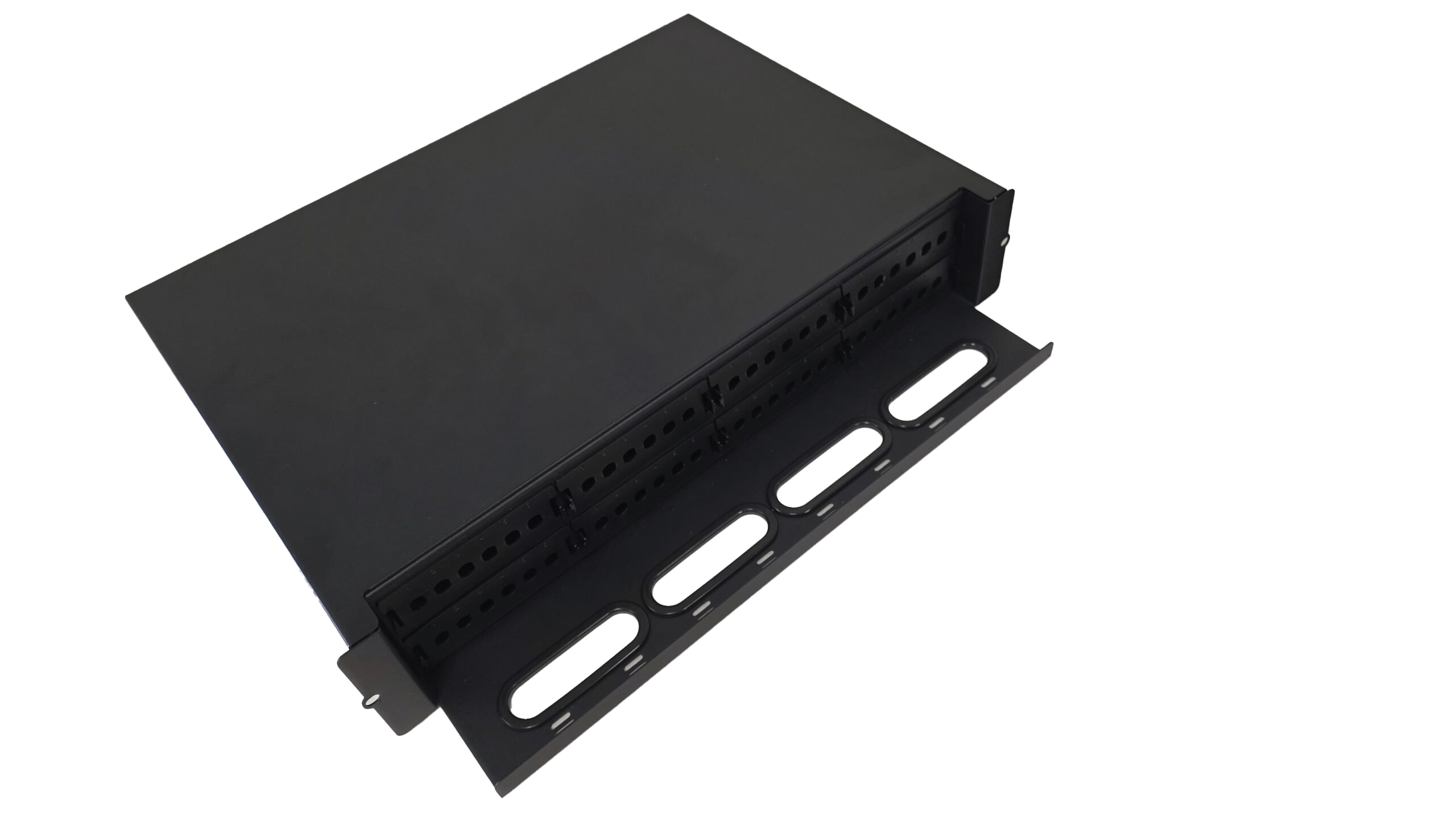

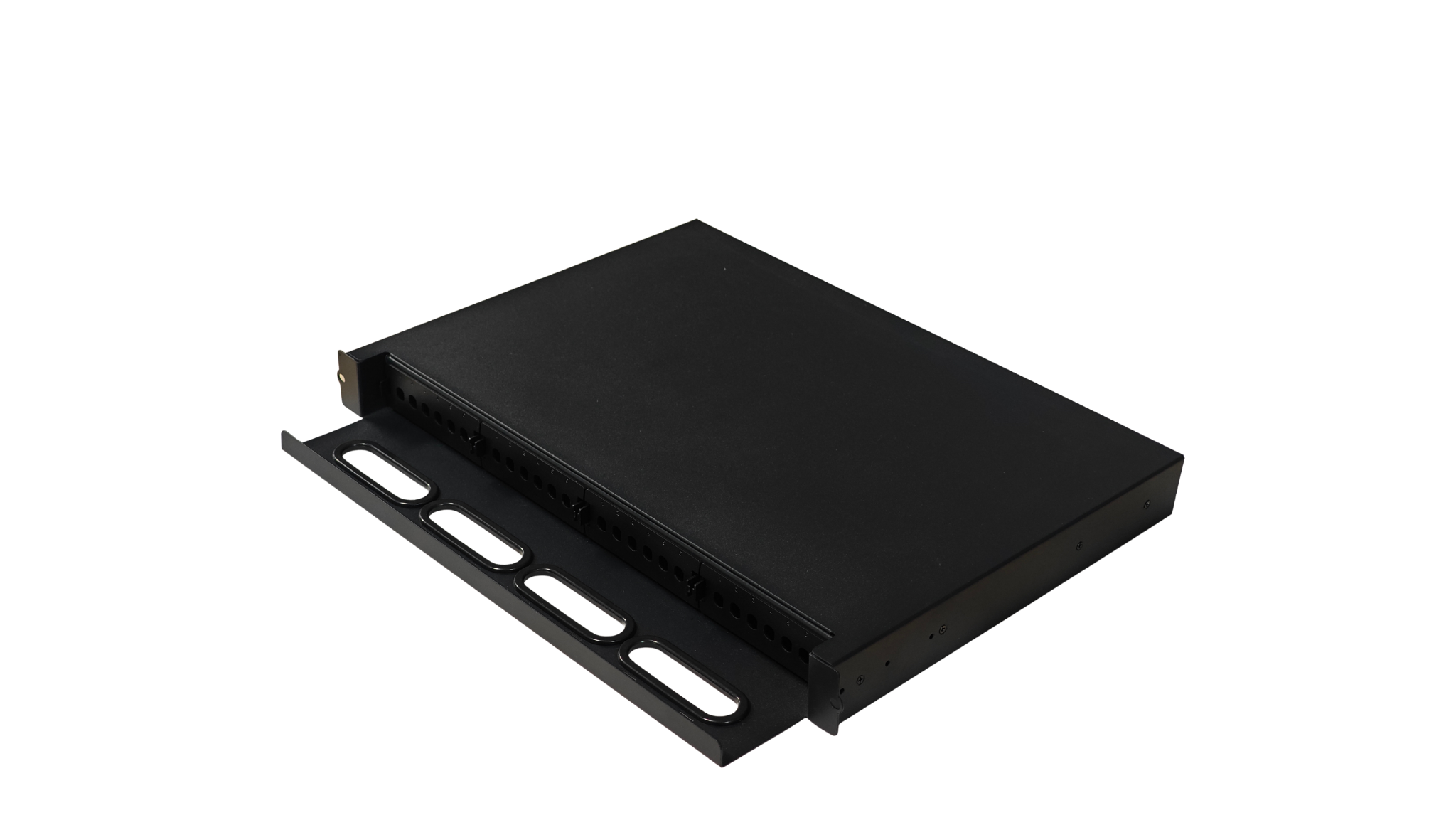

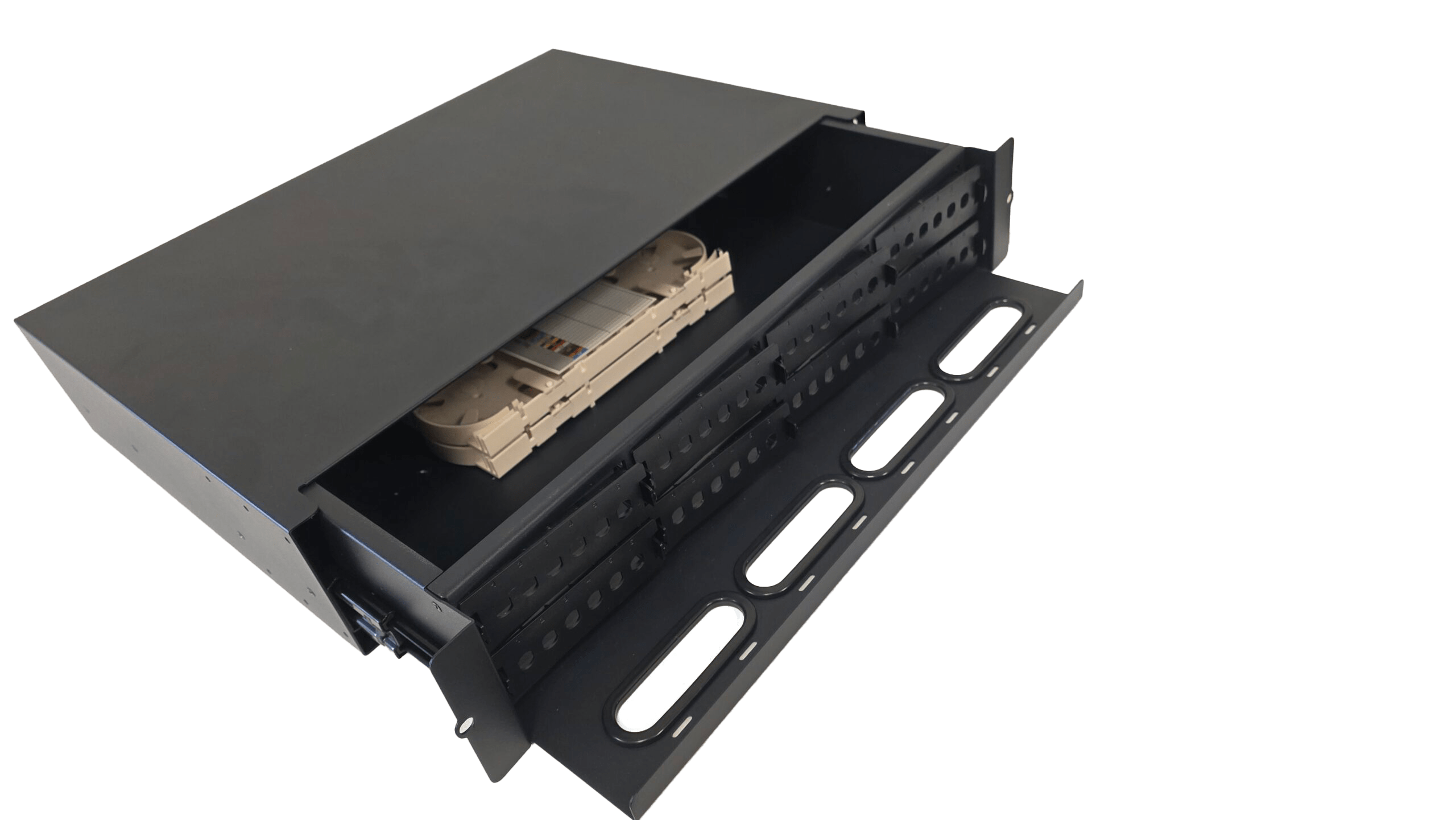

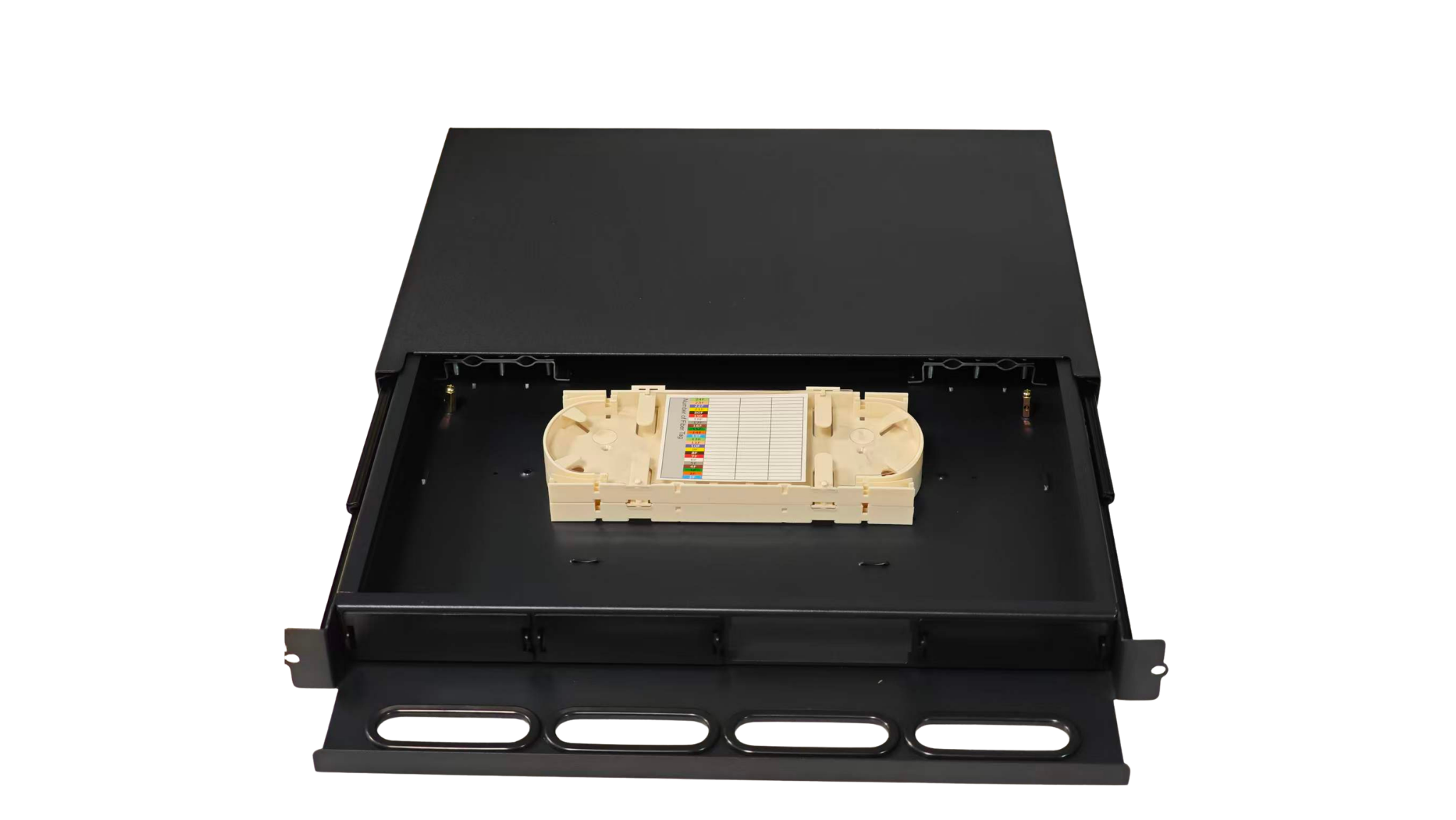

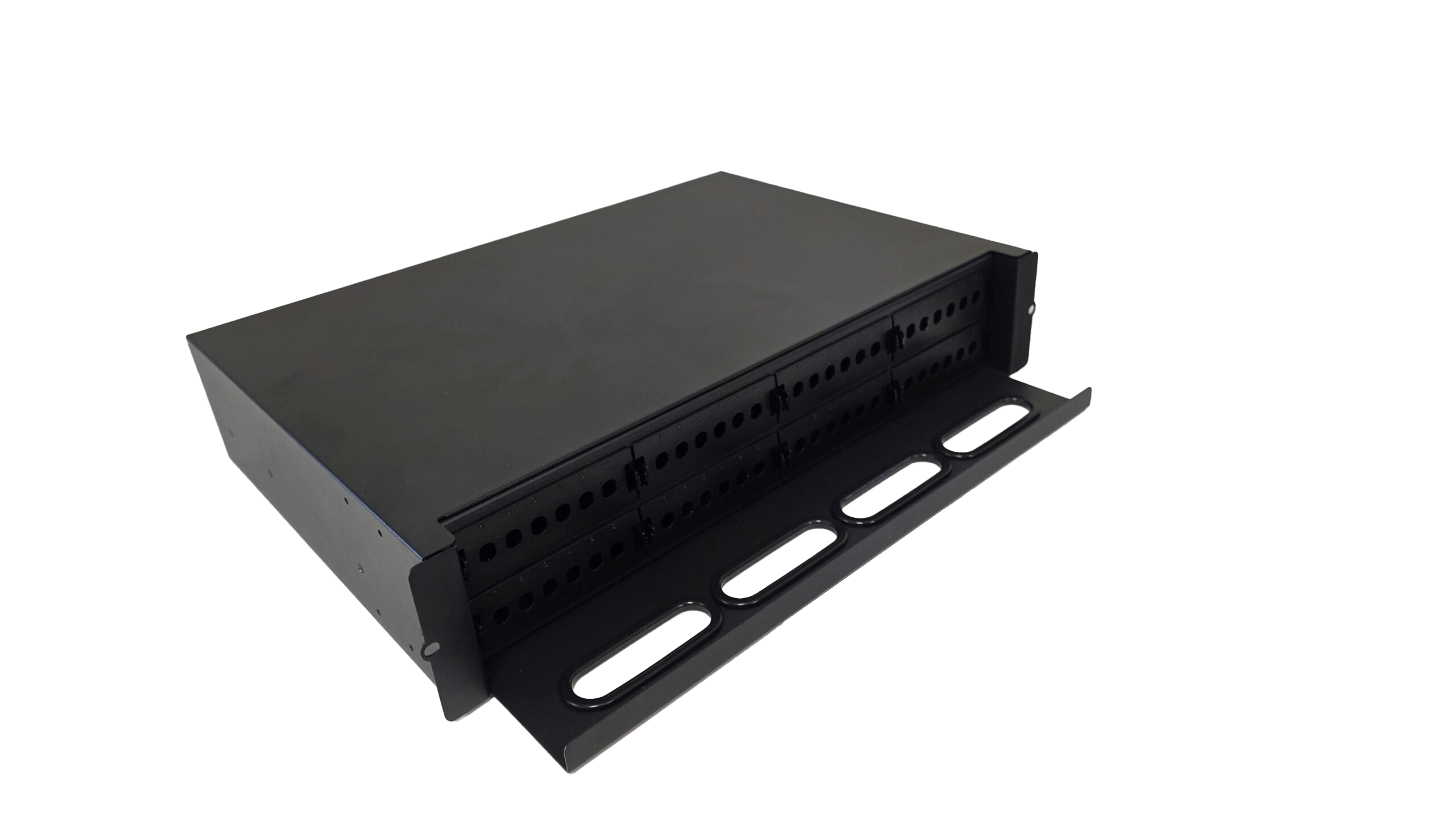

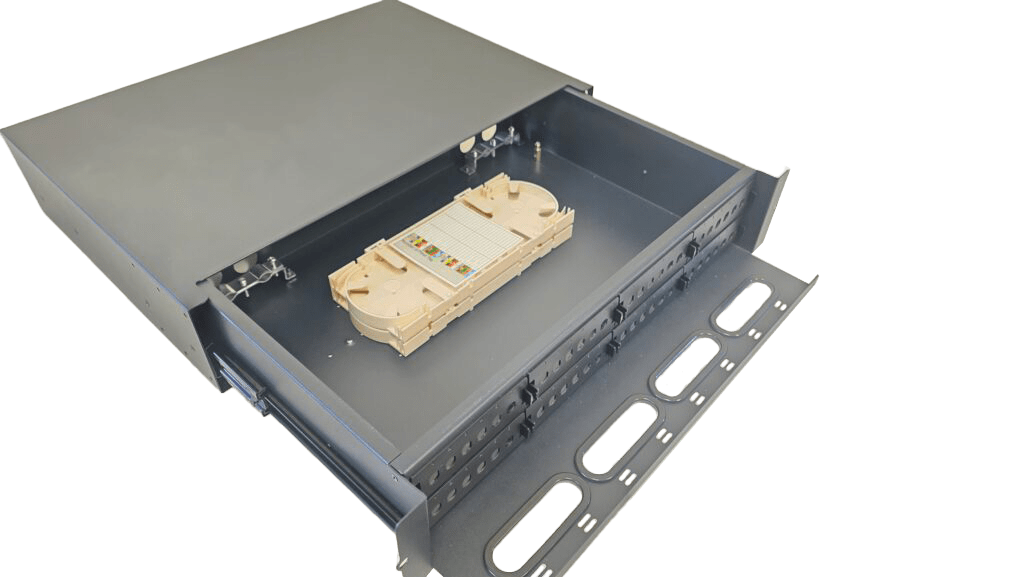

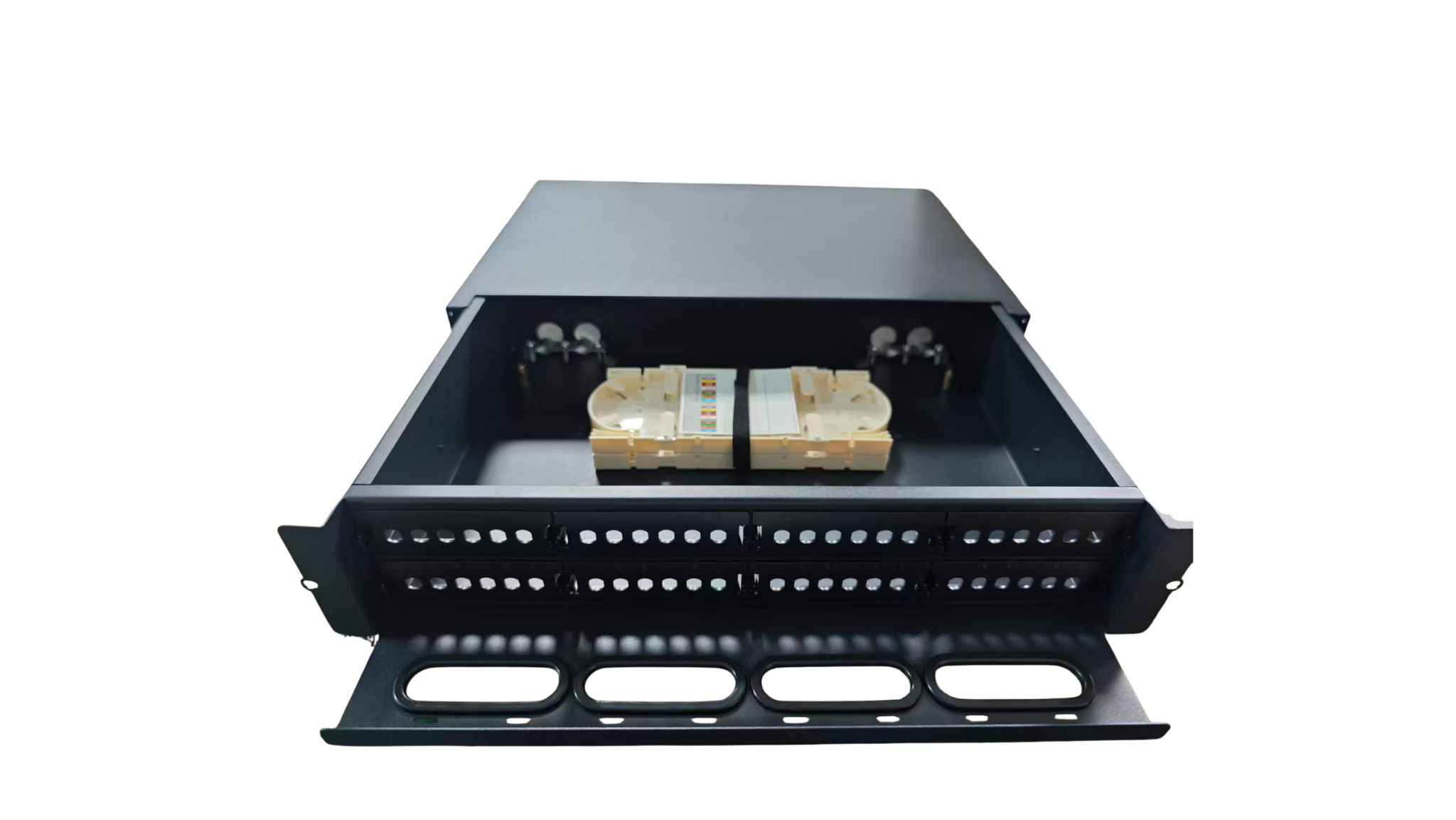

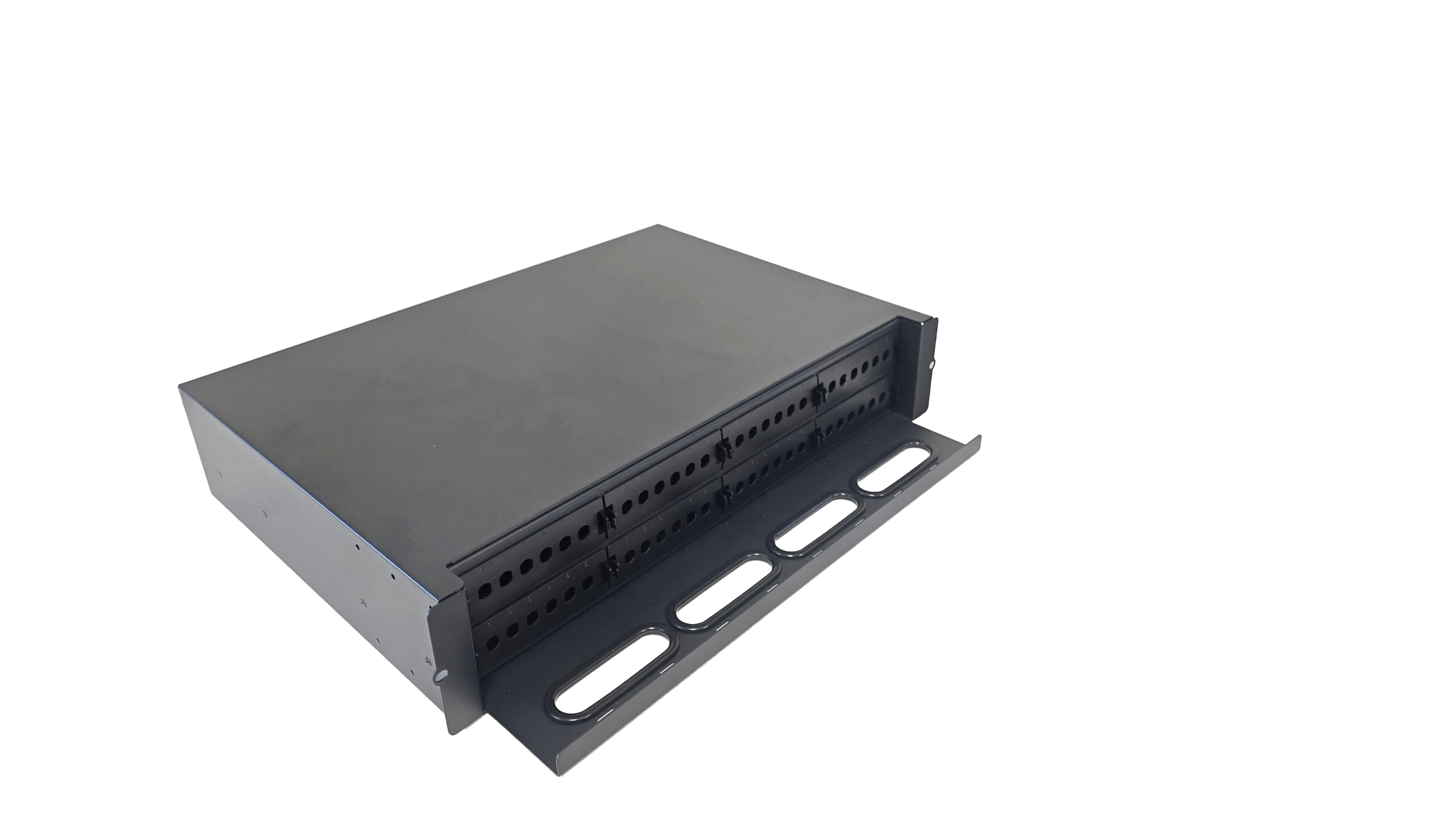

1U Splice Tray Fiber Managerment

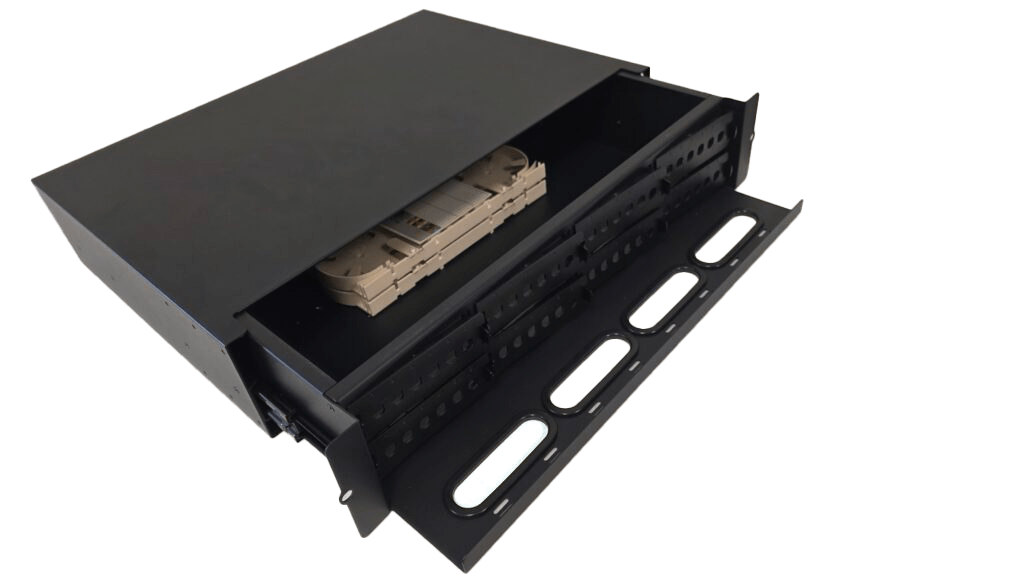

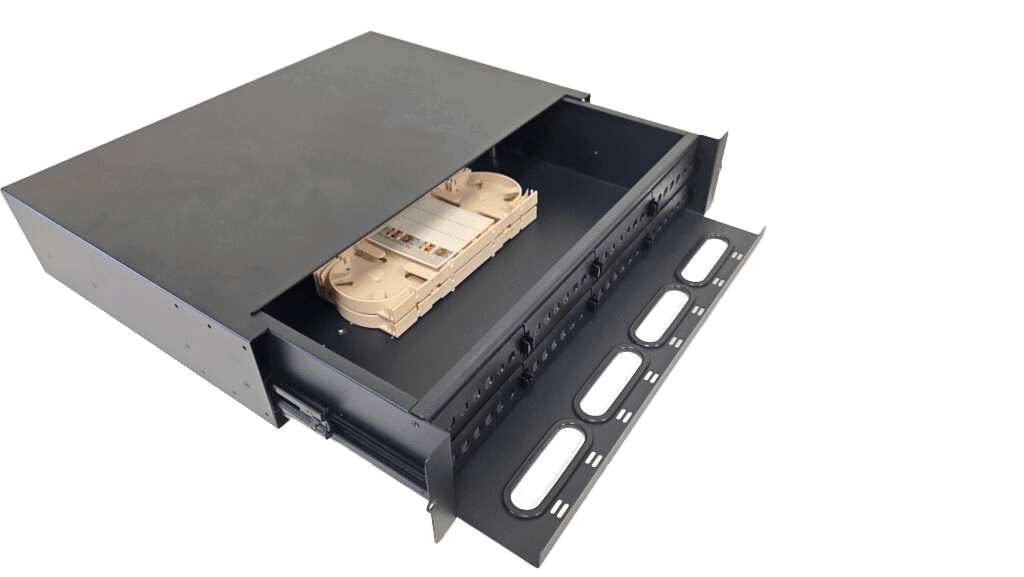

It is made of cold-roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. And it has metal sliding fittings with self-locking functions to prevent the drawer from falling when moved.
Applications:
- Telecommunications
- Fiber to the home (FTTH)
- LAN / WAN
- CATV
Features:
- Standard size, light weight and reasonable structure
- Slide out drawer for easy cable management
- FC, SC, ST, LC adapter patch panel for option
- Front access panel design for easy operation
- Suitable for 19″ or 23″ standard optic distribution cabinets
- With metal front cover
- 2pcs splice trays (each 12 fibers)
- 3pcs adapter plates (each 8pcs adapter ports)
- Max. capacity 24 fibers

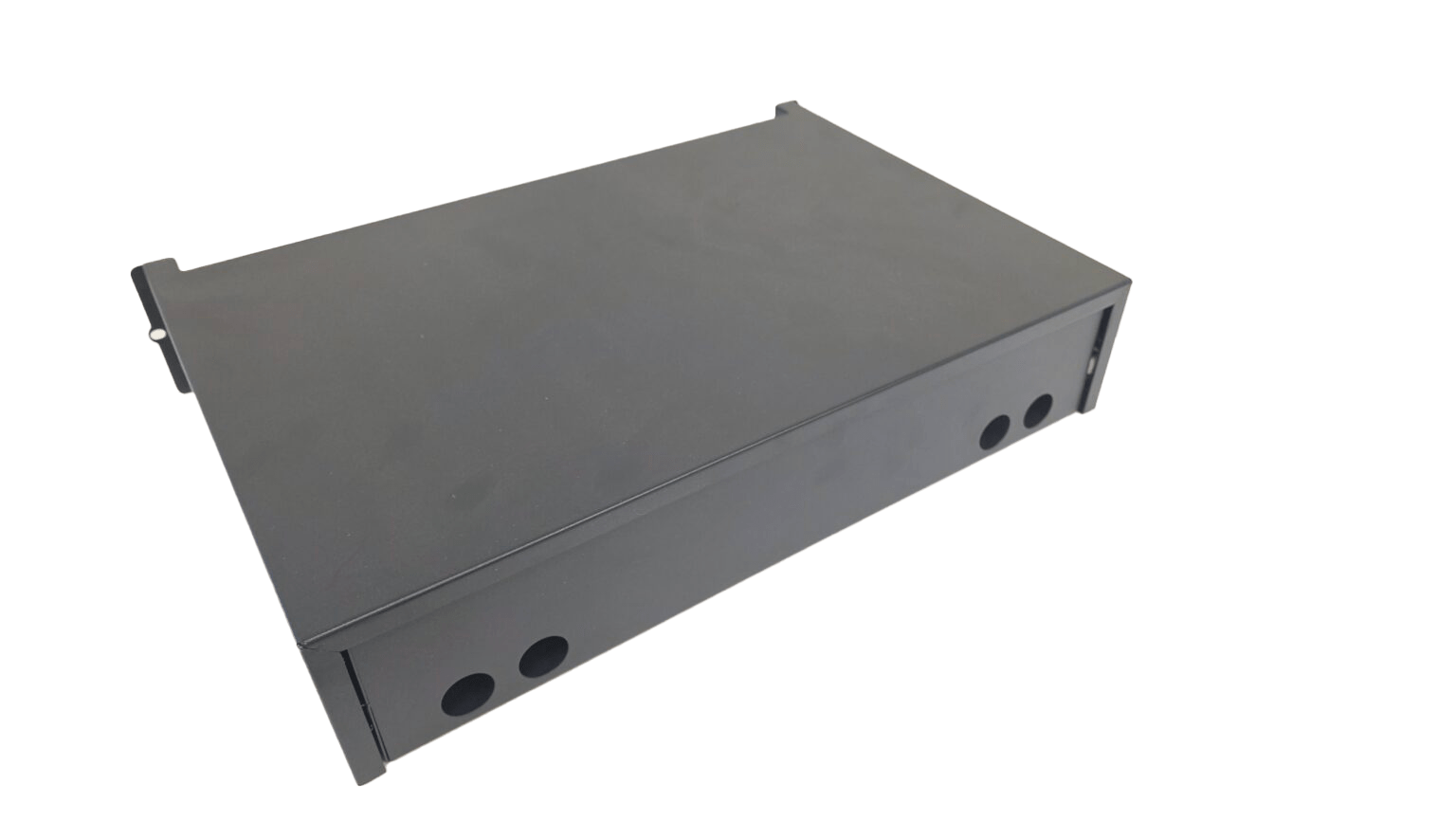

- 4 fiber cable entry ports at rear side
- White or black color
